Marshall Electronics 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (White) - CV620-WH4

Marshall Electronics  3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (White) - CV620-WH4

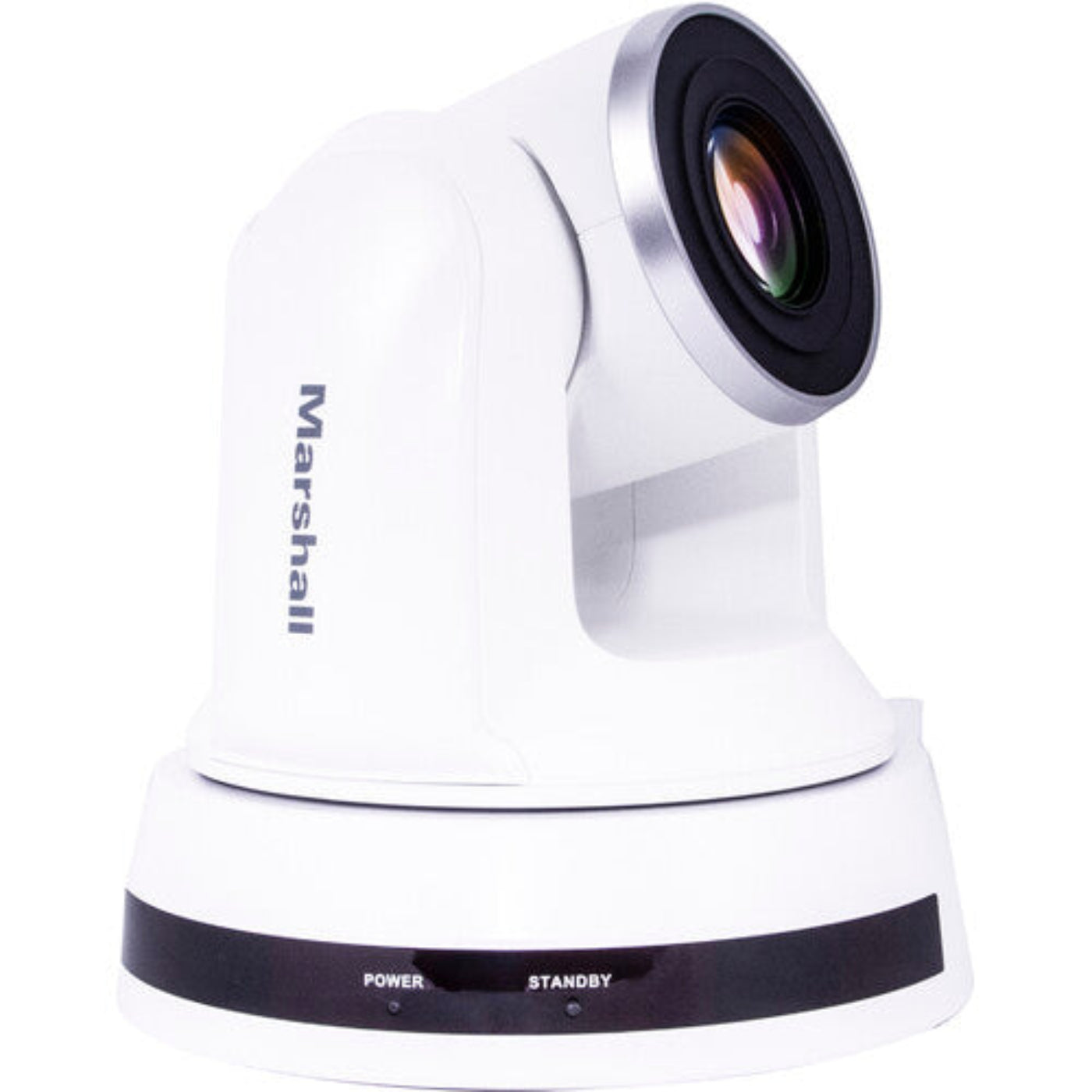

The white CV620 3G-SDI/HDMI PTZ Camera from Marshall Electronics is designed for professional conferencing applications. It captures video at up to 1080p resolution and is equipped with a 5.3 to 110mm lens for up to 20x optical zoom, and it also features a 12x digital zoom.

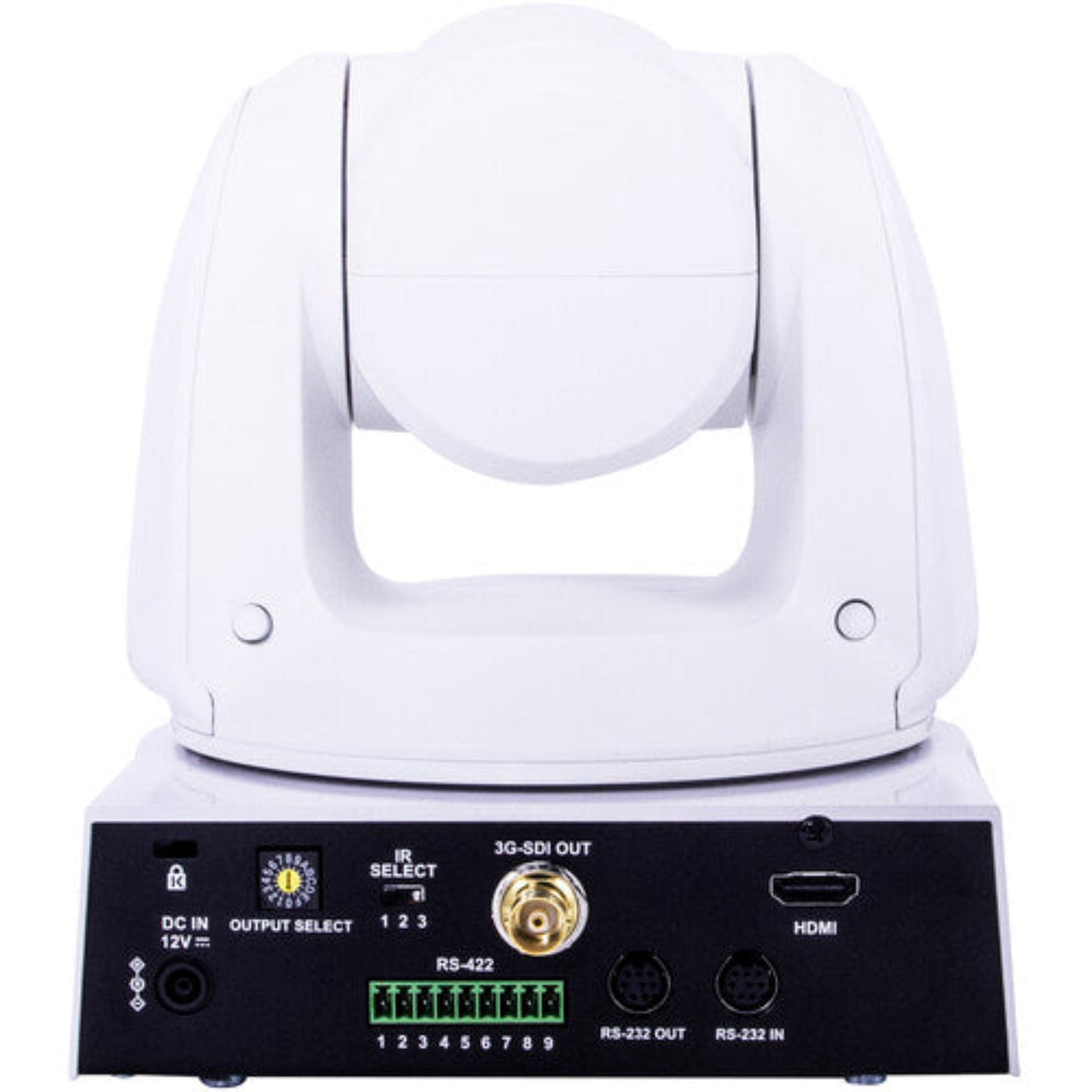

The CV620 features 3G/HD-SDI and HDMI outputs that support up to 1920 x 1080p60 resolution video. You can control and manage the camera using an IR remote or its RS-232 and RS-422 inputs with Pelco and VISCA serial protocols. It's compatible with separately available camera controllers such as the Marshall VS-PTC-IP. The camera is built with a smooth and quiet synchronous PTZ motor that pans 340° and tilts 120°.

Features

• Capture up to 1080p60 Video
• 2MP 1/2.8" Sensor, 5.3 to 110mm Lens
• 20x Optical Zoom, 12x Digital Zoom
• 3G/HD-SDI and HDMI Outputs
• IR, RS-232, and RS-422 Serial Control
• 340° Pan, 120° Tilt

What our Experts Think

Q&A

Q1: What video resolution does the CV620-WH4 support?
A: It delivers Full HD 1080p at 60fps, providing sharp and smooth video for professional applications.

Q2: Does this PTZ camera offer optical zoom?
A: Yes, it features 20x optical zoom, ideal for close-ups without losing image quality.

Q3: What output options are available?
A: Supports 3G-SDI and HDMI outputs, compatible with broadcast, AV, and streaming setups.

Q4: Can it stream over a network?
A: This model focuses on HD-SDI/HDMI outputs; IP streaming is not supported on the CV620-WH4.

Q5: How smooth is the PTZ performance?
A: Offers quiet and precise pan-tilt-zoom movement, suitable for live production, corporate events, and houses of worship.

Q6: What control options are supported?
A: Compatible with VISCA, Pelco-D/P, RS-232, and RS-422 protocols, enabling seamless integration with professional controllers.

Q7: Does it support audio input?
A: No built-in audio input; use external audio systems synchronized with the video feed.

Q8: What are common use cases?
A: Ideal for live streaming, broadcast, lecture capture, corporate meetings, and house of worship applications.

Q9: Is it easy to install?
A: Yes, its compact design and standard mounts make installation straightforward in studios or conference rooms.

Q10: Why choose the CV620-WH4?
A: It combines Full HD quality, 20x optical zoom, and reliable PTZ control, making it a versatile choice for professional AV setups.

Maintenance Tips

• Clean Lens & Housing Gently
  Use a soft microfiber cloth to wipe the lens and exterior regularly—this preserves sharp 1080p video and reliable autofocus/zoom performance.

• Inspect Video Connections
  Check 3G‑SDI and HDMI BNC/Type‑A cables and connectors frequently to ensure stable signal output during live production.

• Check PTZ Movement & Presets
  Exercise pan (≈340°), tilt (≈120°), and zoom functions routinely to keep motors smooth and avoid stiction. Save and test presets to ensure quick, accurate recalls.

• Update and Back Up Firmware
  Use the USB or serial interface to update firmware when available—this can improve control stability and compatibility with controllers.

• Maintain Proper Ventilation
  Keep air vents unobstructed and avoid enclosing the camera in tight, hot spaces to reduce heat buildup.

• Secure Mounting & Stable Power
  Tighten mounts/brackets for wall/ceiling installation and use a surge protector or UPS to protect against power spikes.

• Organize Control Cabling
  Ensure RS‑232/RS‑422 or IR remote wiring doesn’t tug or stress ports, which helps maintain reliable PTZ control.

• Optimize Image Settings Periodically
  Re‑calibrate exposure, white balance, and focus based on lighting conditions for consistent image quality.
