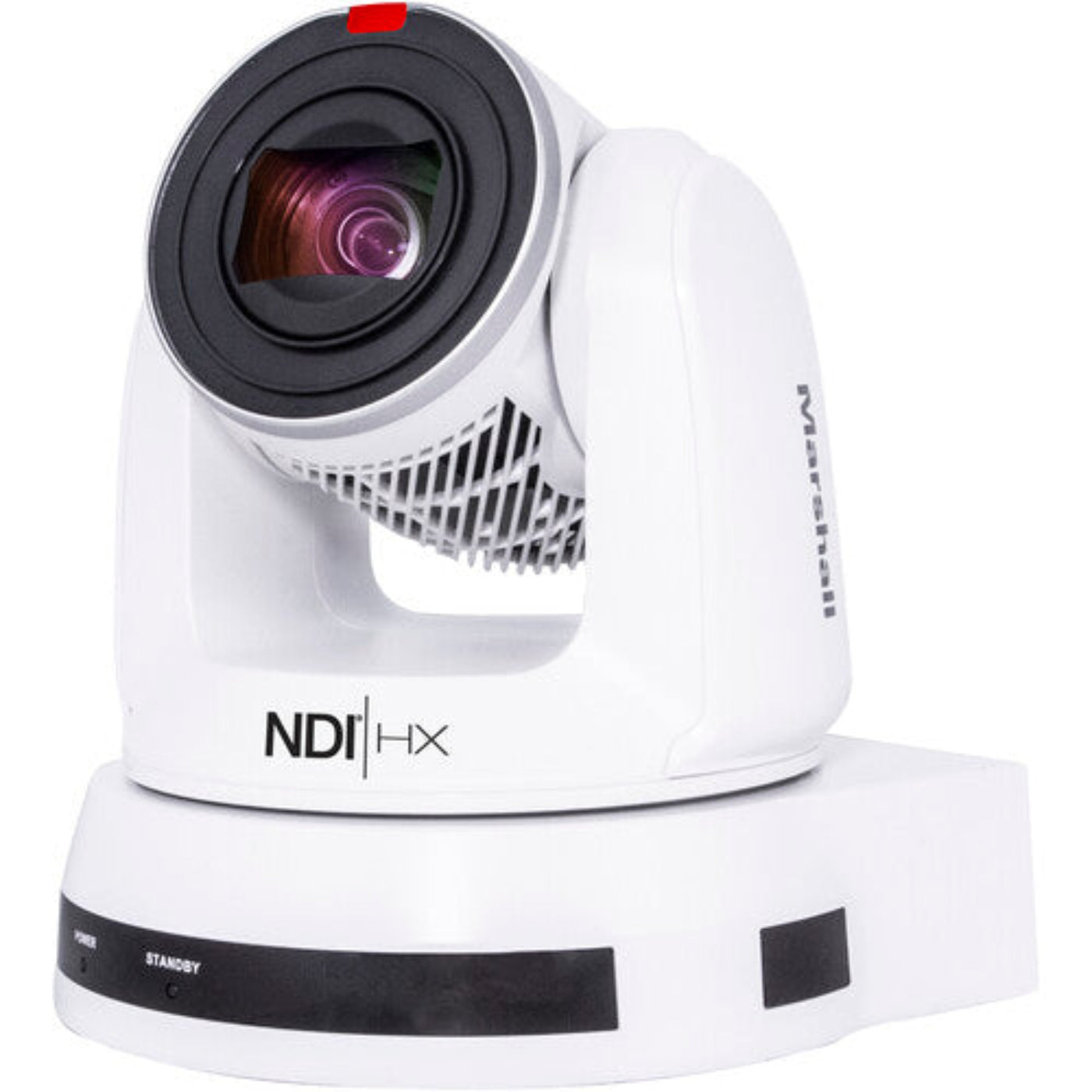

Marshall Electronics UHD 4K30 NDI|HX PTZ Camera (White) - CV630-NDIW
The white CV630-NDIW UHD 4K30 NDI|HX PTZ Camera from Marshall Electronics is designed for professional conferencing applications. Its 8MP sensor captures up to 3840 x 2160p UHD 4K30 resolution with a lens with 30x optical zoom from 4.6 to 135mm and a 70° angle of view. Connectivity features include 3G-SDI, HDMI, and NDI|HX over RJ45 LAN output as well as RS-232 and RS-422 serial control. The RJ45 port also supports PoE+ (Power-over-Ethernet) so you can power the camera on a PoE+ supported LAN without additional power cables.
Stream video using H.265 and H.264 compression over IP for high-quality streaming with the RJ45 Ethernet port, and control the unit using IP, RS-232, or RS-422 with VISCA, Pelco, and ONVIF support. The camera is built with smooth and quiet 340° pan, 120° tilt, and it offers simultaneous PTZ and focus control for advanced transitions
Features
- Up to UHD 4K Resolution, NDI|HX Support
- 8MP 1/2.5" Sensor
- 30x Optical Zoom, 70° Angle of View

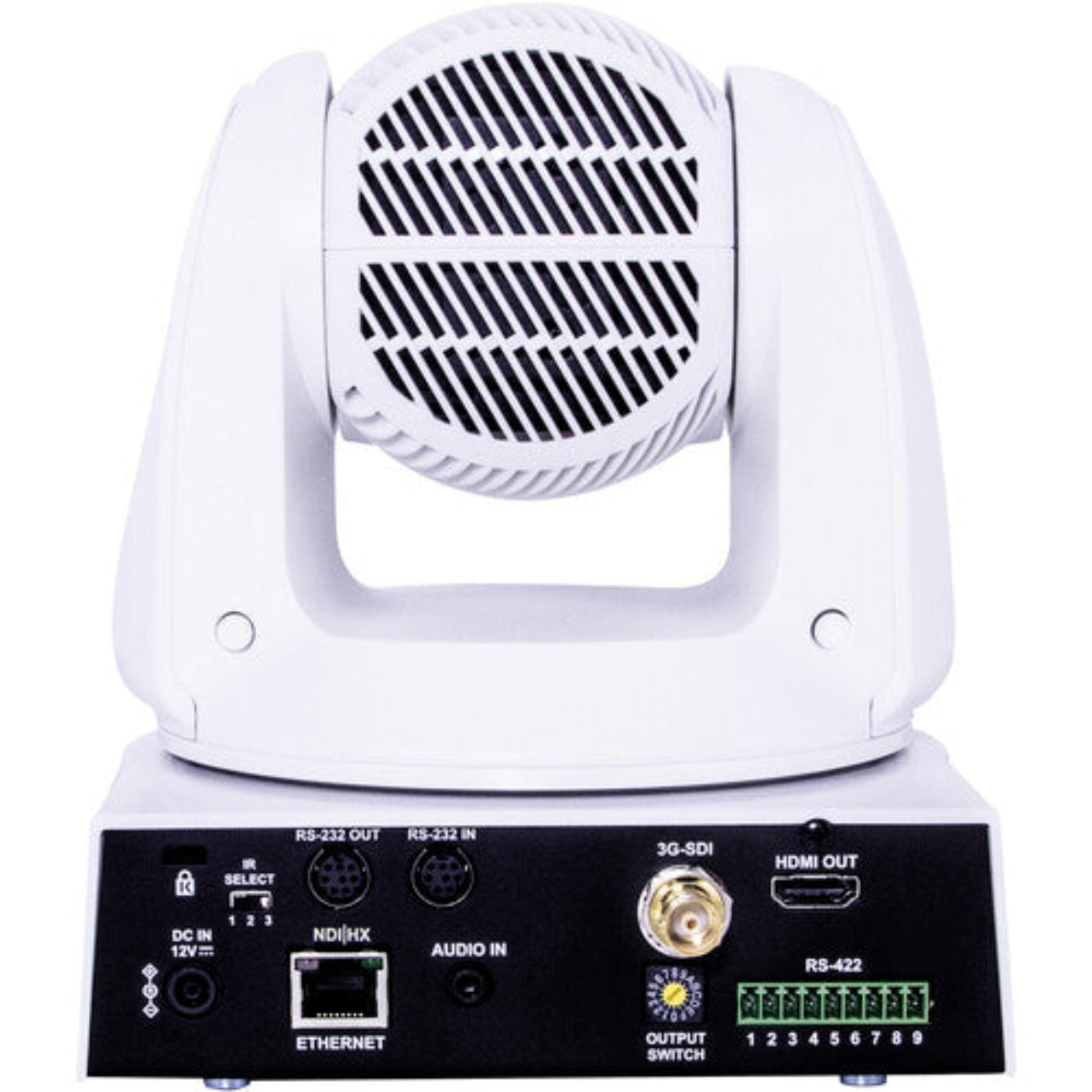

- 3G/HD-SDI, HDMI, and NDI|HX Output
- 35mm Equivalent 4.6 to 135mm Lens
- IR Remote Select
What our Experts Think
-
UHD 4K30 Resolution: Delivers crisp, professional-quality video for streaming and broadcast.
-
NDI|HX Connectivity: Seamless IP workflow for low-latency network streaming.
-
Precision PTZ Control: Smooth pan, tilt, and zoom for dynamic shots and automated operation.
-
Durable White Design: Sleek, professional appearance for studios, corporate setups, and live events.
-
Reliable Performance: Engineered for consistent, long-term use in demanding environments.
Q&A
Q: What video quality does the CV630‑NDIW deliver?
A: Captures UHD 4K (3840×2160) at 30 fps, plus HD resolutions, using a professional 8 MP sensor for sharp, broadcast-quality video.
Q: How strong is the zoom and field of view?
A: Features 30× optical zoom with wide horizontal coverage (~70°) for flexible framing from wide shots to close-ups.
Q: What outputs and connectivity are supported?
A: Offers NDI|HX IP streaming, HDMI, and SDI outputs simultaneously, with PoE+ support for one-cable power, video, and control.
Q: Can the camera be remotely controlled?
A: Yes — supports NDI Tools, RS‑232/RS‑422, VISCA, Pelco, and ONVIF protocols for PTZ and settings control via hardware or software.
Q: What PTZ capabilities does it offer?
A: Smooth pan, tilt, and zoom with wide range movement and 256 programmable preset positions for fast, repeatable shots.
Q: Does it support audio?
A: Yes — includes a stereo audio input integrated over video outputs for synchronized audio-video workflows.
Q: What applications is it best for?
A: Ideal for broadcast, live production, corporate AV, houses of worship, education, and remote streaming requiring high-quality 4K NDI video.
Maintenance Tips
-
Clean the lens & body using a soft microfiber cloth and approved optical cleaner to maintain sharp 4K30 image quality.
-
Check and secure all connections (NDI/PoE, power) to prevent video dropouts and ensure stable network control.
-
Update firmware regularly to improve camera performance, NDI|HX compatibility, and feature stability.
-
Inspect PTZ mechanics frequently for smooth pan/tilt/zoom movement without noise or sticking.
-
Ensure proper ventilation and avoid exposure to excessive heat or direct sunlight to extend component lifespan.
-
Use surge protection or UPS to protect electronics from power spikes and network interruptions.
-
Monitor network health to support stable high‑bandwidth 4K30 streaming and remote operation.
