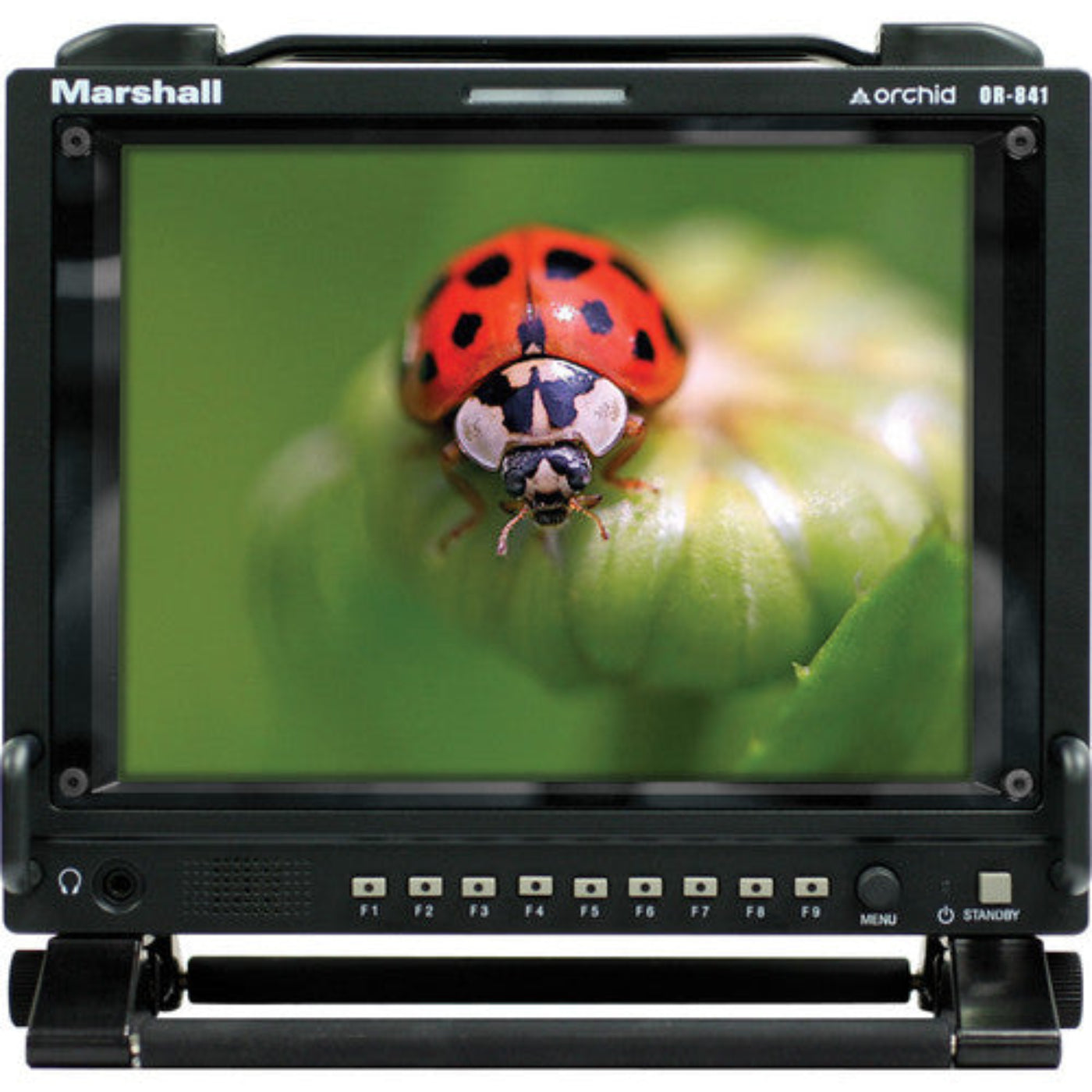

Marshall Full Featured Single 8.4" Field / Camera Top Monitor with HDSDI/SDI inputs only - OR-841-HDSDI
The OR-841-HDSDI 8.4" ORCHID rack mountable / portable field monitor has all the features that customers have asked for and more. The OR-841-HDSDI is 4RU and has 9 user-assignable function keys as well as a rotary menu system.
The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen. The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x.
The OR-841-HDSDI will also de-embed and display up to 16 channels of audio and allow the user to monitor any two channels at once through the headphone jack or rear line output jack. Also includes built-in front panel speaker and rear panel stereo input for audio monitoring.
The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-841-HDSDI comes standard with auto-sensing HD-SDI inputs and re-clocked output. This unit can be used in a rack, on a desktop, in the field, or mounted to a camera
- 1024 x 768 Resolution
- 400 cd/m²
- 500:1 Contrast Ratio
- HD-SDI
- Real-Time Waveform Monitor
- Real-Time Color Vectorscope
- Auto White Balance Calibration
- Sixteen 64-segment Tri-color Audio Meters
- Tri-Color Tally Indicator
- On-Screen Time Code
- 7 assignable GPI inputs
- Adjustable Color Temperature
- Auto-Sensing Front Panel Headphone Jack
- Auto-Sensing Rear Unbalanced Stereo Output
- Adjustable Clipping Indicator
- Precision Gamma Settings
- Adjustable Color Temperature
- Variety of Safety Markers

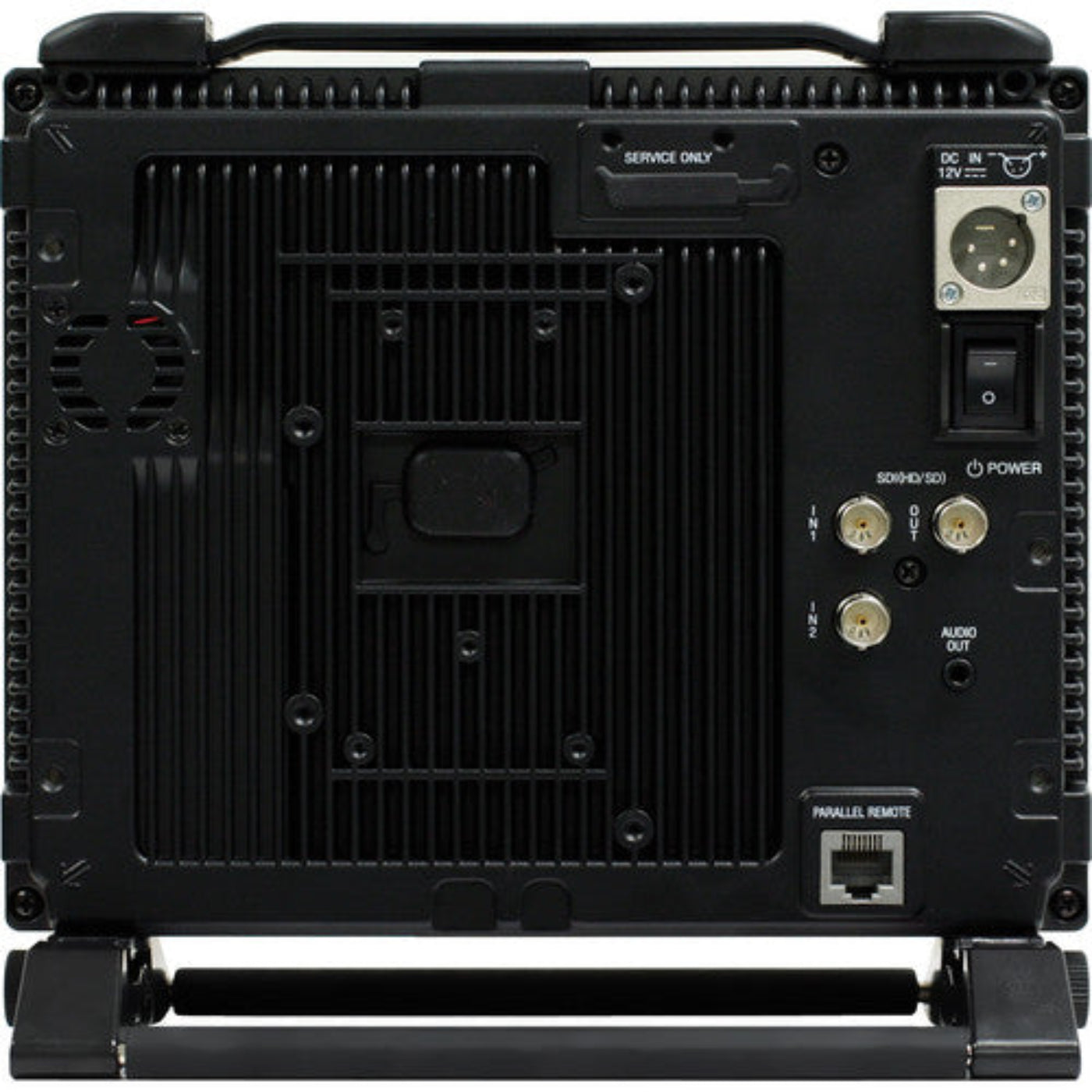

- HD-SDI / SDI Inputs and Output
- Supports 3 different Battery Adapters
- Factory-installed Protective Screen
- Automatic Color Calibration with ORCHID Color Probe
- Adjustable / Detachable Stand with top handle
What our Experts Think
-
Compact yet powerful on-camera monitoring
The 8.4" display strikes a perfect balance between portability and viewing clarity, ideal for field production and camera-top use.
-
Professional SDI connectivity
Equipped with HDSDI/SDI inputs, ensuring reliable, low-latency signal transmission for broadcast-grade workflows.
-
Sharp and accurate image rendering
Delivers true-to-life color and detail, helping camera operators achieve precise focus and exposure on set.
-
Built for rugged field use
Durable construction makes it well-suited for demanding production environments, from outdoor shoots to studio setups.
-
User-friendly controls
Intuitive interface allows quick adjustments, saving time during fast-paced shoots.
-
Ideal for broadcast & cinema professionals
A strong choice for videographers seeking a dependable, high-quality field monitor without unnecessary complexity.
Q&A
Q1: What is the Marshall OR-841-HDSDI monitor?
A professional 8.4-inch field and camera-top monitor designed for broadcast and video production with HD-SDI/SDI inputs only.
Q2: What inputs does this monitor support?
It features dual HD-SDI/SDI inputs with loop-through output for seamless video signal monitoring.
Q3: What screen size and resolution does it offer?
The monitor has an 8.4" display with 1024 x 768 resolution and a 4:3 aspect ratio.
Q4: Is it suitable for professional video production?
Yes, it includes advanced tools like waveform monitor, vectorscope, and audio meters for precise broadcast monitoring.
Q5: Does it support audio monitoring?
Yes, it can de-embed and monitor up to 16 audio channels, with headphone and stereo outputs.
Q6: Can it be used on-camera and in studio setups?
Yes, it is versatile for camera-top mounting, rack installation, desktop use, or field production
Maintenance Tips
-
Clean the Display Properly
Use a microfiber cloth and screen-safe cleaner to avoid scratches and maintain clear image quality.
-
Protect SDI Ports & Cables
Regularly inspect HDSDI/SDI connectors for dust or looseness to prevent signal loss or flickering.
-
Battery & Power Care
Use compatible batteries and avoid overcharging to extend battery life and ensure stable operation on shoots.
-
Firmware Checks
Install any available updates to maintain compatibility with modern cameras and improve performance.
-
Avoid Overheating
Keep ventilation areas unobstructed and avoid prolonged use in extreme heat to protect internal components.
-
Secure Mounting
Ensure the monitor is firmly mounted on your camera rig to prevent physical damage during movement.
-
Storage & Transport
Use a padded case to protect against dust, moisture, and impact when not in use.
-
Check Display Calibration
Periodically verify brightness, contrast, and color accuracy for consistent on-set monitoring.
