Marshall Desktop Quad View 17 inch native resolution. 4K quad 3GSDI (IMD) Monitor w/ desktop stand - QVW-1708-3G-DT

Marshall  Desktop Quad View 17 inch native resolution. 4K quad 3GSDI (IMD) Monitor w/ desktop stand - QVW-1708-3G-DT

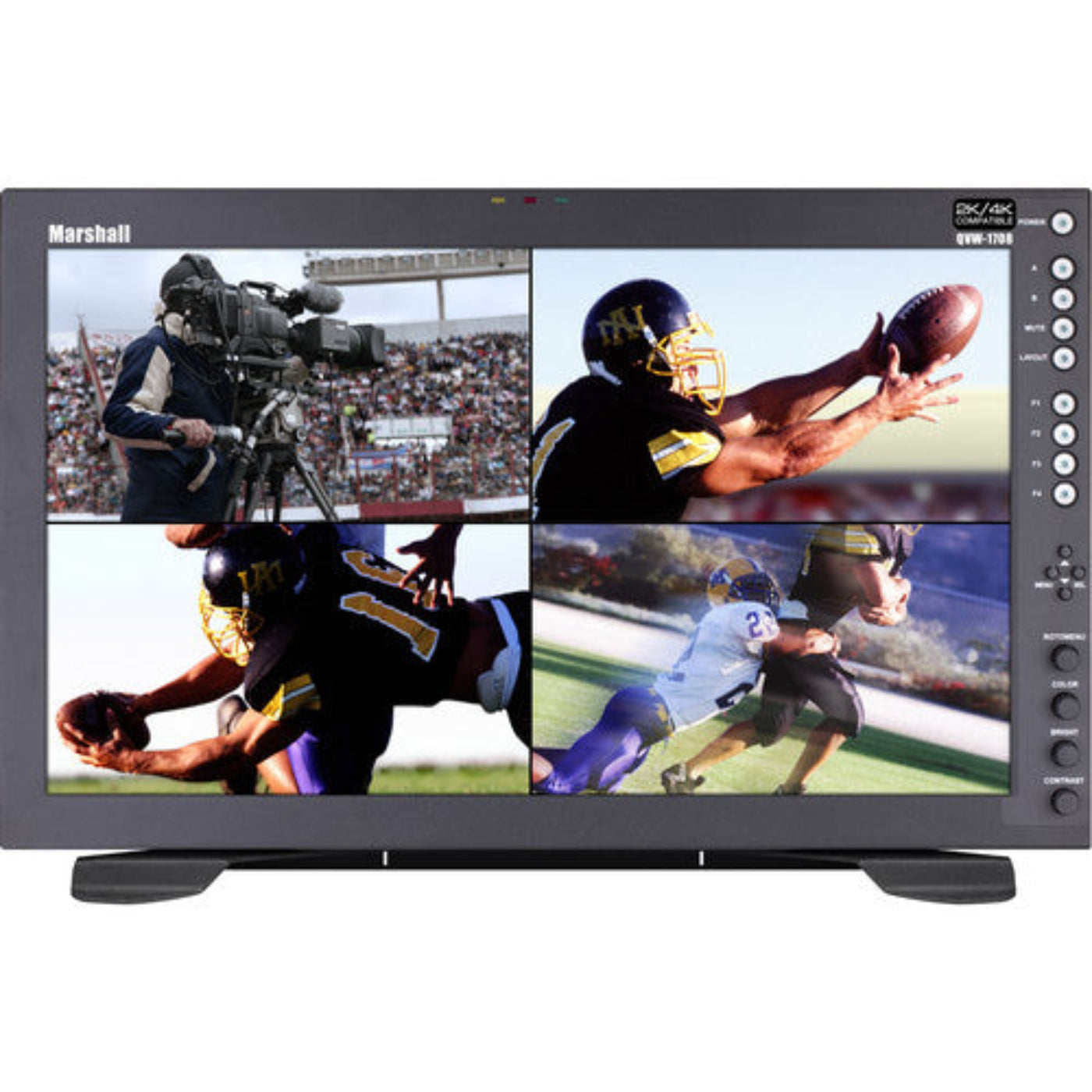

The QVW-1708-3G is part of Marshall Electronics' Quad Viewer series of rack mount monitors which can function as a single display supporting inputs up to 4K or four separate displays in Quad View mode supporting inputs up to 1920 x 1080 in each quadrant.

The QVW-17083-3G can be mounted in any standard EIA 19-inch equipment rack. The attached rack ears can be angled to provide the user control over the viewing angle. A VESA standard 75mm hole pattern also allosws custom mounting installations.

• Convenient, intuitive front panel controls in addition to control via network

• Quad 3GSDI inputs with active loop-through and auto format detection

• 1920 x 1080 Native Display (16 x 9)
• Network Control via Ethernet
• 400 cd/m²
• 1920 x 1080 Native Display (16 x 9)
• Accepts Input Resolutions Up to 4096 x 2160
• IMD - In Monitor Display Functions
• Area Markers
• Hard Tally + Soft Tally
• Network Control via Ethernet
• Presence indicators for TC, CC (608/708), Audio
• Bar Display for Embedded Audio, also Timecode Display

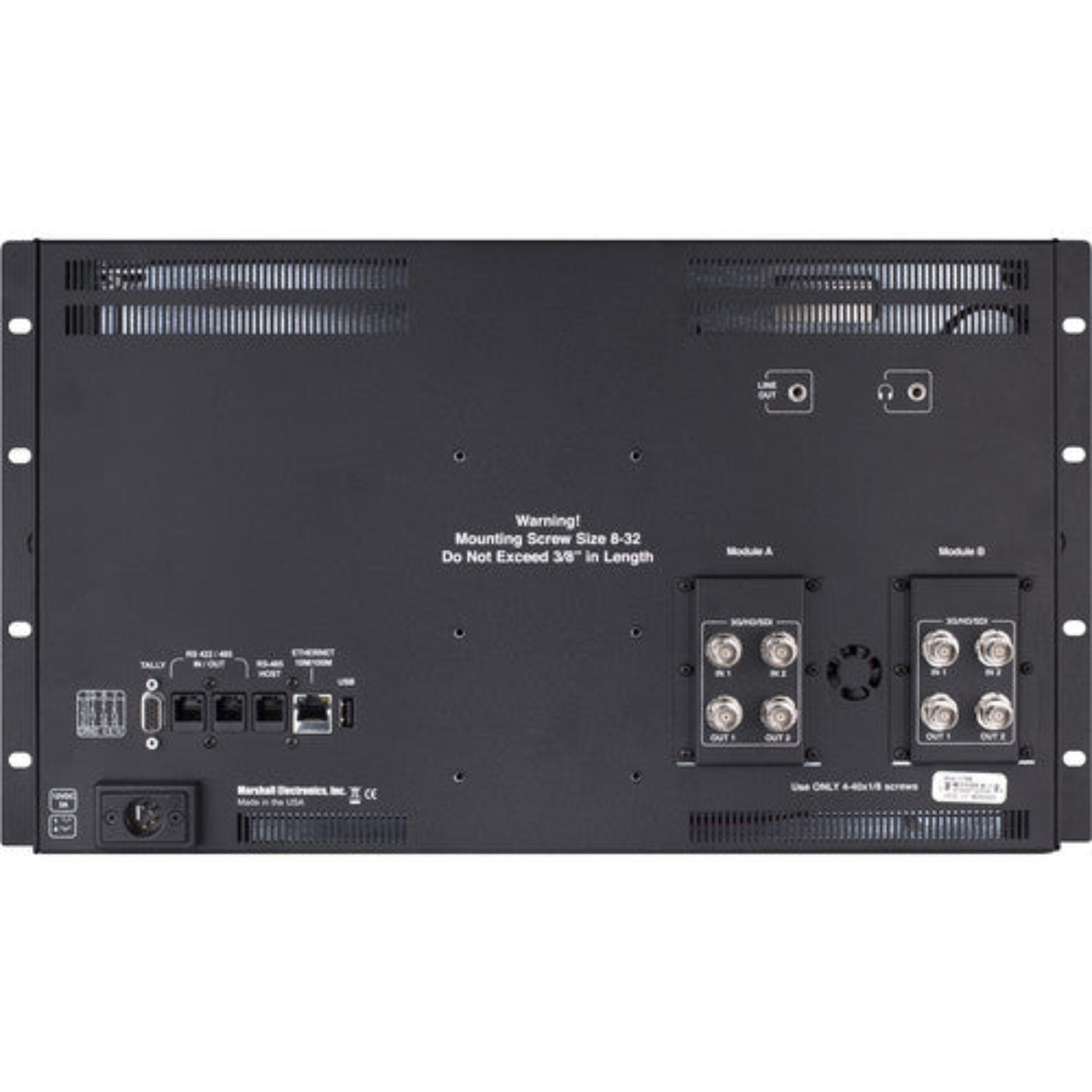

• RS-485 in/out/host ports allow daisy-chaining IMD and display functions
• Pixel-to-Pixel Mode
• Compatible with CalMAN 5 Calibration Technology
• IMD Control via Ethernet or RS-485 serial data
• Status Display Shows True Format / Frame Rate
• Rack Ears Included
• In-field firmware update
