Marshall Quad View 17 inch native resolution 4K quad HDMI (IMD) w/ Desktop Stand - QVW-1708-HDI-DT

Marshall Quad View 17 inch native resolution 4K quad HDMI (IMD) w/ Desktop Stand -  QVW-1708-HDI-DT

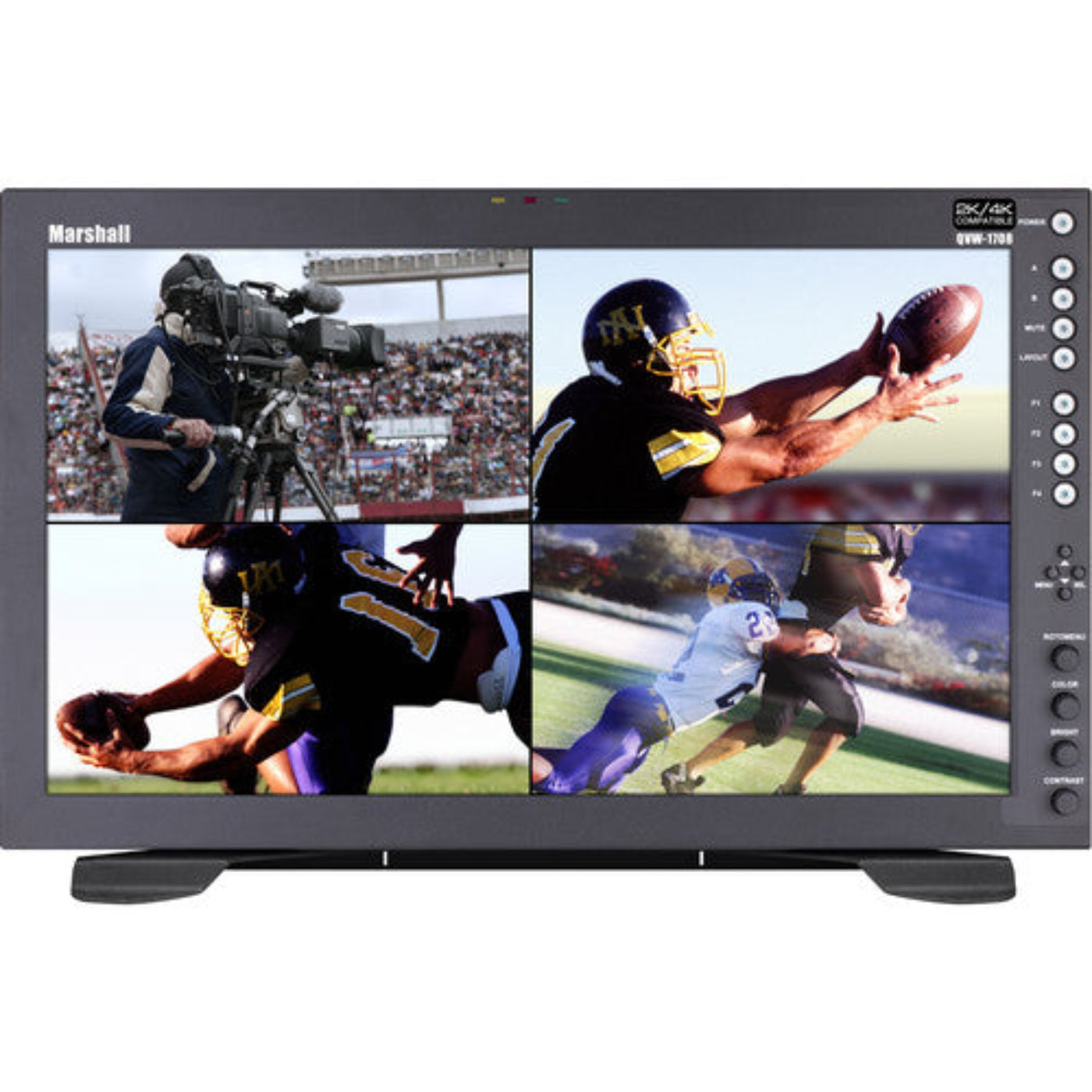

The QVW-1708-3G is part of Marshall Electronics' Quad Viewer series of rack mount monitors which can function as a single display supporting inputs up to 4K or four separate displays in Quad View mode supporting inputs up to 1920 x 1080 in each quadrant.

• Convenient, intuitive front panel controls in addition to control via network

• Quad 3GSDI inputs with active loop-through and auto format detection

• 1920 x 1080 Native Display (16 x 9)
• Network Control via Ethernet
• Rack Ears Included
• In-field firmware update
• 1920 x 1080 Native Display (16 x 9)
• Accepts Input Resolutions Up to 4096 x 2160
• IMD - In Monitor Display Functions
• Area Markers
• Hard Tally + Soft Tally
• Network Control via Ethernet
• Presence indicators for TC, CC (608/708), Audio
• Bar Display for Embedded Audio, also Timecode Display
• RS-485 in/out/host ports allow daisy-chaining IMD and display functions
• Pixel-to-Pixel Mode
• Compatible with CalMAN 5 Calibration Technology
• IMD Control via Ethernet or RS-485 serial data
• Status Display Shows True Format / Frame Rate
• Rack Ears Included
• In-field firmware update

What our Experts Think

• Professional quad‑view monitoring in one screen
  The Marshall Quad View 17" native resolution 4K quad HDMI (IMD) monitor — QVW‑1708‑HDI‑DT displays up to four HDMI sources simultaneously, boosting efficiency in live production, post‑, broadcast, and control room workflows. Native 1920×1080 resolution ensures clarity across all quadrants.

• 4K‑ready and versatile inputs
  Accepts dual HDMI inputs with support for resolutions up to 4K, letting operators monitor high‑res content while maintaining quad‑view flexibility.

• Advanced IMD and assist tools
  Built‑in In‑Monitor Display (IMD), tally OSD, audio bars, timecode display, pixel‑to‑pixel mode, and area markers help with focus, framing, and real‑time signal info — key for pro decision‑making.

• Flexible placement & control
  Includes desktop stand and rack ears for adaptable deployment, plus front panel controls, network/Ethernet control, and RS‑485 ports for integrated system management.

• Reliable build for 24/7 operations
  Designed to withstand continuous use in demanding environments like studios and production trucks, with calibration compatibility and firmware updates

Q&A

Q1: What is the Marshall Electronics QVW‑1708‑HDI‑DT?
A professional 17″ desktop/rack‑mount quad‑view monitor with HDMI quad input and advanced in‑monitor display (IMD) tools for multi‑source video monitoring.

Q2: What is the screen size and native resolution?
It features a 17.3″ LCD panel with native Full HD 1920 × 1080 resolution (16:9).

Q3: How many inputs and what type?
Supports dual HDMI inputs with quad‑view layout, allowing four HD signals to be displayed simultaneously.

Q4: Does it support 4K signals?
Yes — it accepts up to 4K (3840×2160 / 4096×2160) inputs and scales them for quad or full‑screen display.

Q5: What professional monitoring features are included?
IMD functions show on‑screen data such as audio bars, timecode, and format info; plus tally OSD, pixel‑to‑pixel mode, area markers, and blue‑only.

Q6: Can the monitor be mounted in different setups?
Yes — includes both desktop stand and rack ears for flexible installation.

Q7: Is there remote or network control?
Yes — network control via Ethernet and RS‑485 serial connections for IMD and display control.

Q8: What environments is this suitable for?
Ideal for broadcast control rooms, live production, studios, event monitoring, and multi‑camera workflows where quad‑view monitoring is needed.

Maintenance Tips

• Clean Display Regularly
  Use a soft microfiber cloth to preserve the 17" 4K display clarity and prevent scratches.

• Check HDMI Connections
  Inspect HDMI ports and cables frequently to ensure stable multi-source quad-view monitoring.

• Maintain Ventilation
  Keep the monitor well-ventilated to prevent overheating during extended use.

• Firmware Updates
  Apply the latest firmware to maintain compatibility and improve performance.

• Power Safety
  Use a surge protector or UPS to prevent damage from voltage spikes.

• Calibrate Image Settings
  Adjust brightness, contrast, and color periodically for accurate monitoring across all four feeds.

• Organize Cables
  Avoid strain on HDMI and power cables to reduce wear and signal issues.

• Secure Desktop Placement
  Ensure the stand is stable and avoid impacts to protect internal components.
