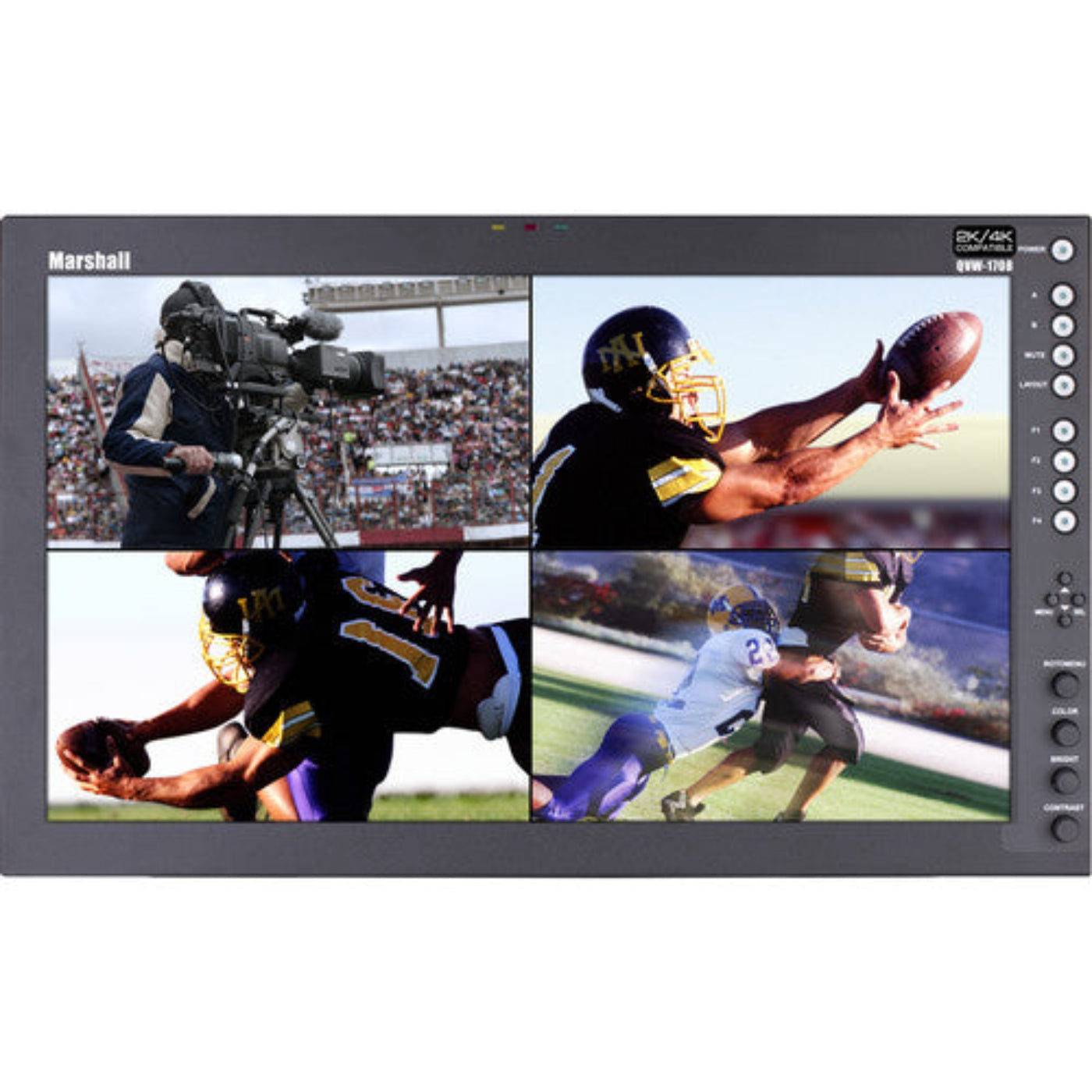

Marshall Quad View 17 inch native resolution. Quad HDMI (IMD) - QVW-1708-HDI
The QVW-1708 is part of Marshall Electronics' Quad Viewer series of rack mount monitors which can function as a single display supporting inputs up to 4K or four separate displays in Quad View mode supporting inputs up to 1920 x 1080 in each quadrant.
• Convenient, intuitive front panel controls in addition to control via network
• Quad 3GSDI inputs with active loop-through and auto format detection
The QVW-17083-3G can be mounted in any standard EIA 19-inch equipment rack. The attached rack ears can be angled to provide the user control over the viewing angle. A VESA standard 75mm hole pattern also allosws custom mounting installations.
1920 x 1080 Native Display (16 x 9)
Accepts Input Resolutions Up to 4096 x 2160
IMD - In Monitor Display Functions
Area Markers
Hard Tally + Soft Tally
Network Control via Ethernet
Presence indicators for TC, CC (608/708), Audio
Bar Display for Embedded Audio, also Timecode Display
RS-485 in/out/host ports allow daisy-chaining IMD and display functions
Pixel-to-Pixel Mode
Compatible with CalMAN 5 Calibration Technology
IMD Control via Ethernet or RS-485 serial data
Status Display Shows True Format / Frame Rate
Rack Ears Included
In-field firmware update
1920 x 1080 Native Display
Features
- HDMI Dual Input
- 400 cd/m²
What our Experts Think
-
True quad‑view performance for HDMI workflows
The Marshall QVW‑1708‑HDI lets you view up to four HDMI sources simultaneously on a 17″ native 1920×1080 panel, streamlining multicamera monitoring in broadcast, live event, and control room environments.
-
Flexible quad layout + full‑screen mode
Configure inputs in standard quad or alternate layouts (including full‑screen) to match your production needs without external switchers.
-
Advanced in‑monitor display (IMD) tools
Built‑in IMD features like audio bars, tally OSD, blue‑only, pixel‑to‑pixel, gamma presets, and area markers help operators assess exposure, color, and signal health at a glance.
-
Dual HDMI input & broad compatibility
Accepts two HDMI sources up to 1080p and scales or positions them across quadrants with auto sensing, facilitating mixed‑format workflows.
-
Professional control & connectivity
Front panel knobs plus Ethernet and RS‑485/422 control support remote management, while rack ears make 19″ installation simple.
-
Reliable rack‑ready build
A robust 6RU form factor with 400 cd/m² brightness and wide viewing angles means dependable performance in studios, OB vans, and monitoring suites.
Q&A
Q1: What is the Marshall Electronics QVW‑1708‑HDI?
A professional 17″ quad‑view monitor that displays up to four HDMI video sources simultaneously with advanced in‑monitor display (IMD) tools.
Q2: What is the screen size and resolution?
It features a 17.3″ LCD panel with native Full HD 1920×1080 resolution.
Q3: How many HDMI inputs does it support?
It supports 4x HDMI inputs, each with loop‑through outputs for multi‑camera monitoring workflows.
Q4: Does it support 4K signals?
Yes — it accepts up to 4K (UHD/DCI) HDMI inputs and scales them for quad or full‑screen display.
Q5: What is IMD (In‑Monitor Display)?
IMD overlays on‑screen info like audio levels, format metadata, timecode, tally, and signal status for professional monitoring.
Q6: Is it suitable for multi‑camera productions?
Absolutely — ideal for live events, broadcast control rooms, studios, OB vans, and multi‑camera monitoring setups.
Q7: What professional monitoring tools are included?
Pixel‑to‑pixel mode, area markers, false color, blue‑only, tally display, and customizable on‑screen layouts.
Q8: Can it be mounted in different setups?
Yes — the unit is compatible with rack mounting (optional ears) or desktop use.
Maintenance Tips
-
Clean Screen Gently
Use a microfiber cloth to maintain 17" display clarity and prevent scratches.
-
Check HDMI Connections
Inspect HDMI cables and ports regularly to avoid signal loss across all four feeds.
-
Ensure Proper Ventilation
Keep the monitor well-ventilated to prevent overheating during long sessions.
-
Firmware Updates
Install the latest firmware for improved performance and device compatibility.
-
Power Protection
Use a surge protector or UPS to safeguard against voltage spikes.
-
Calibrate Display Settings
Periodically adjust brightness, contrast, and color for accurate quad-view monitoring.
-
Organize Cables
Prevent strain on HDMI and power cables to reduce wear and connectivity issues.
-
Stable Placement
Ensure a secure desktop or rack setup to avoid impacts or vibrations.
