Marshall Pre-Loaded Monitor with two MD-HDSDIx2-A Modules - V-MD702-HDSDIX2
Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to system integration. These rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the need to upgrade or replace equipment when a different input or application is required. This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

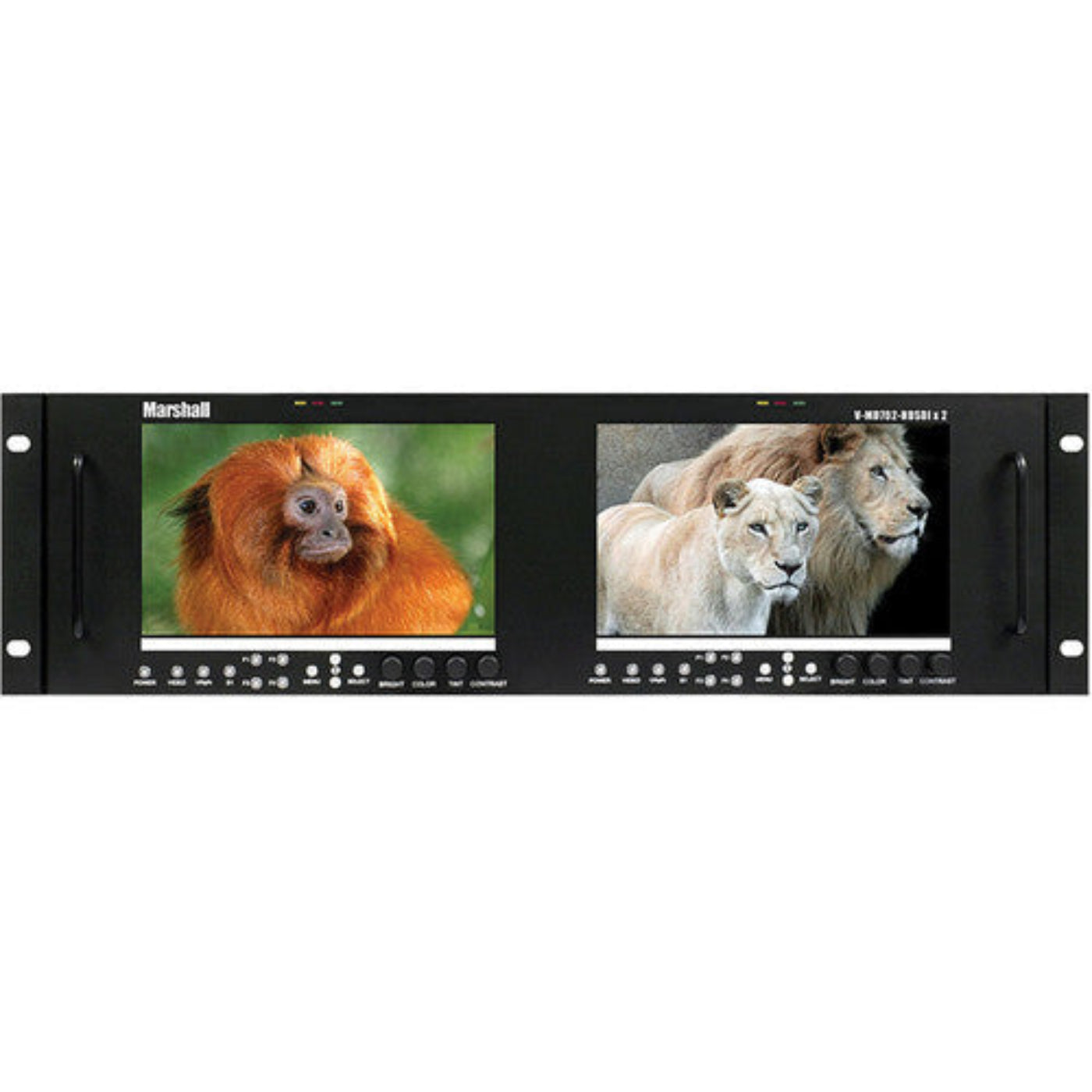

The V-MD702-HDSDIx2 offers two 800 x 480 LED-backlit LCDs in one single configuration, along with excellent viewing angles. The V-MD702-HDSDIx2 includes Composite and Component loop-through, along with two-channel HD-SDI Input Modules with switched output. Other major features include Status Display, False Color Filter, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, user-definable function buttons, and more. A variety of modules are available including 3G/HD/SDI with loop-through, Fiber-Optic input/output modules, and more.
Marshall's MD monitors integrate Telecast Fiber System's TeleCube™ Fiber-Optic HD-SDI transmission input/output modules. These new fiber modules deliver the industry's broadest range of digital rates while maintaining pristine signal quality that broadcasters and integrators demand.
Features
- Includes 2 MD-HDSDIX2-A Modules
- 2 LED-backlit LCDs
- Resolution - 800 x 480
- Contrast Ratio - 600:1
What our Experts Think
-
Pre-Loaded Monitor: Ready-to-use setup saves time and simplifies workflow.
-
Dual MD-HDSDIx2-A Modules: Provides versatile 3G/HD-SDI input for multi-source monitoring.
-
High-Quality Display: Accurate color and sharp detail for professional video production.
-
Flexible Integration: Ideal for live events, broadcast, and multi-camera setups.
-
Reliable Performance: Robust design ensures consistent operation in demanding environments.
Q&A
A: A dual 7″ professional rack‑mount LCD monitor pre‑loaded with two MD‑HDSDIx2‑A HD‑SDI input modules for flexible high‑definition video monitoring in broadcast and pro AV setups.
Q: What display quality does it offer?
A: Two LED‑backlit 800×480 LCD panels with 450 cd/m² brightness, 600:1 contrast and wide 140°×100° viewing angles for clear imaging from any position.
Q: What input modules are included?

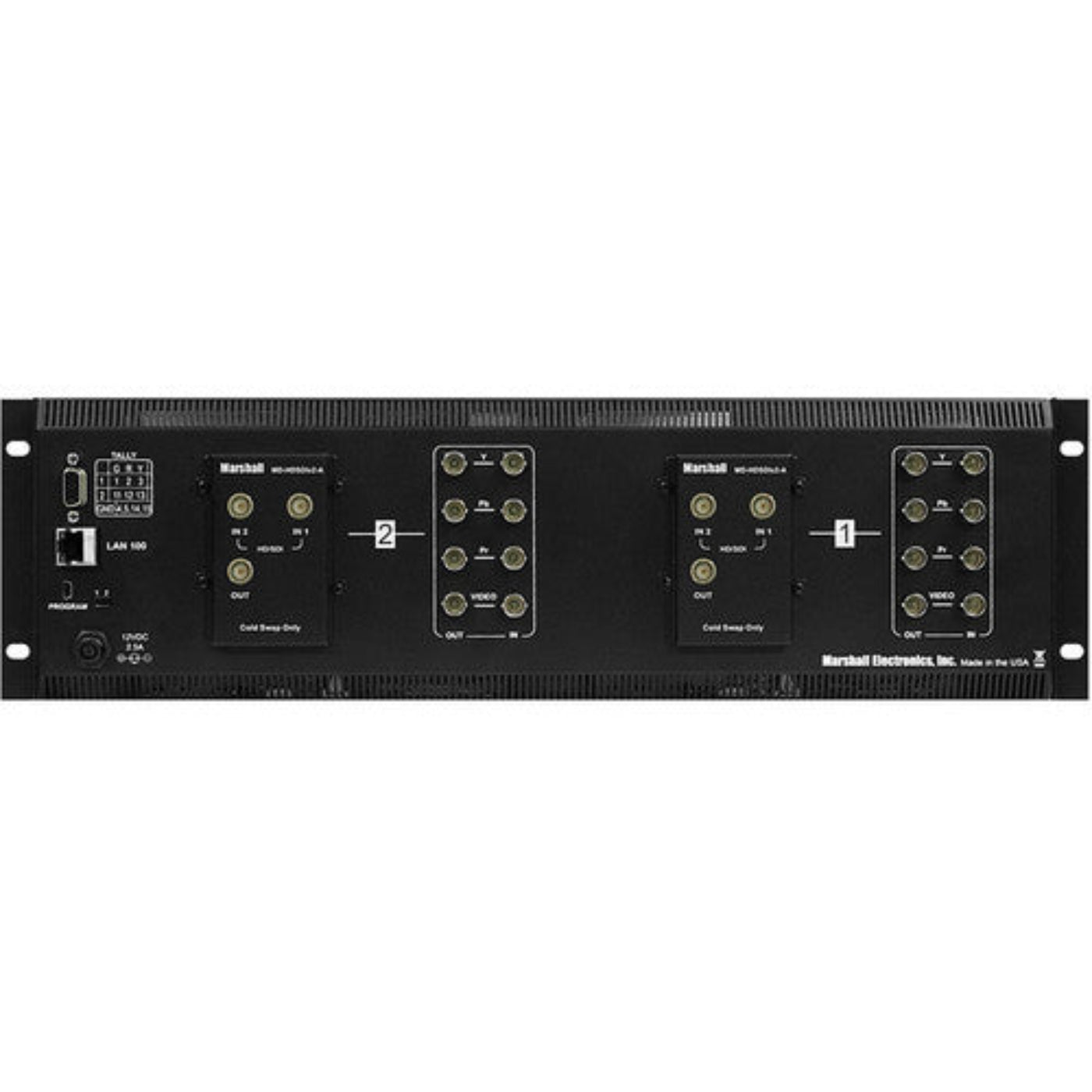

A: Includes two MD‑HDSDIx2‑A modules with dual HD‑SDI inputs and switched outputs for versatile HD‑SDI signal routing.
Q: Which video formats and connections are supported?
A: Supports HD‑SDI (720/1080) and SD‑SDI via included modules plus composite and component loop‑through, adaptable to evolving signal needs.
Q: What professional monitoring features are built in?
A: Offers false color, markers, freeze frame, color temperature presets, pixel‑to‑pixel mode, blue gun assist, hard tally and user‑definable function buttons.
Q: Is network monitoring and control available?
A: Yes — LAN port with built‑in web server enables remote monitoring and front‑panel control via browser.
Q: How is this monitor typically used?
A: Ideal for broadcast trucks, studios, live production racks, OB vans, and modular AV systems needing dual HD‑SDI monitoring.
Maintenance Tips
-
Wipe the display regularly using a soft, lint‑free microfiber cloth; avoid ammonia‑based cleaners to protect the screen coating.
-
Keep module slots clean by powering off and using gentle compressed air to clear dust from MD‑HDSDIx2‑A interfaces.
-
Check all video and power connections (HDSDI, power cables) to ensure solid signal paths and prevent wear.
-
Update firmware when available to maintain compatibility and stability with HDSDI sources.
-
Ensure proper ventilation around the unit; avoid blocked vents to reduce heat stress on internal boards.
-
Use surge protection or UPS to guard against voltage spikes that could impact sensitive electronics.
-
Store and operate in stable environments — moderate temperature and humidity extend lifespan.
