Marshall 17" Native HD Resolution IMD LCD Rack Mount Monitor with Waveform & Vectorscope Displays w/ Desktop Stand - V-R173-DLW-DT
The 17.3" V-R173-DLW monitor features 3G, Dual Link and DVI inputs and displays Waveform & Vectorscope, Digital Audio and a host of additional information in a 10 bit "no compromise" video path. In Quad-View mode, the input signal can be broken into four quadrants that simultaneously displays all of the critical information needed to keep your signal path within all critical specifications.
Additional features include IMD protocol support for TSL, NVISION, Image Video, and MEI (Marshall Electronics) tricolor tally and in- monitor text systems via RS-485. Other display features include full CEA-608-B and CEA-708-B Closed Captioning, Timecode and VANC data.
1920 x 1080 LED-backlit panel
The V-R173-DLW features an all-digital 1920x1080 LED-Backlit display. The LCD panel features a brightness of 400 cd/m² and a 600:1 contrast ratio making it ideal in a variety of environments and lighting conditions.
Multi mode, Vectorscope and Waveform Monitor mode

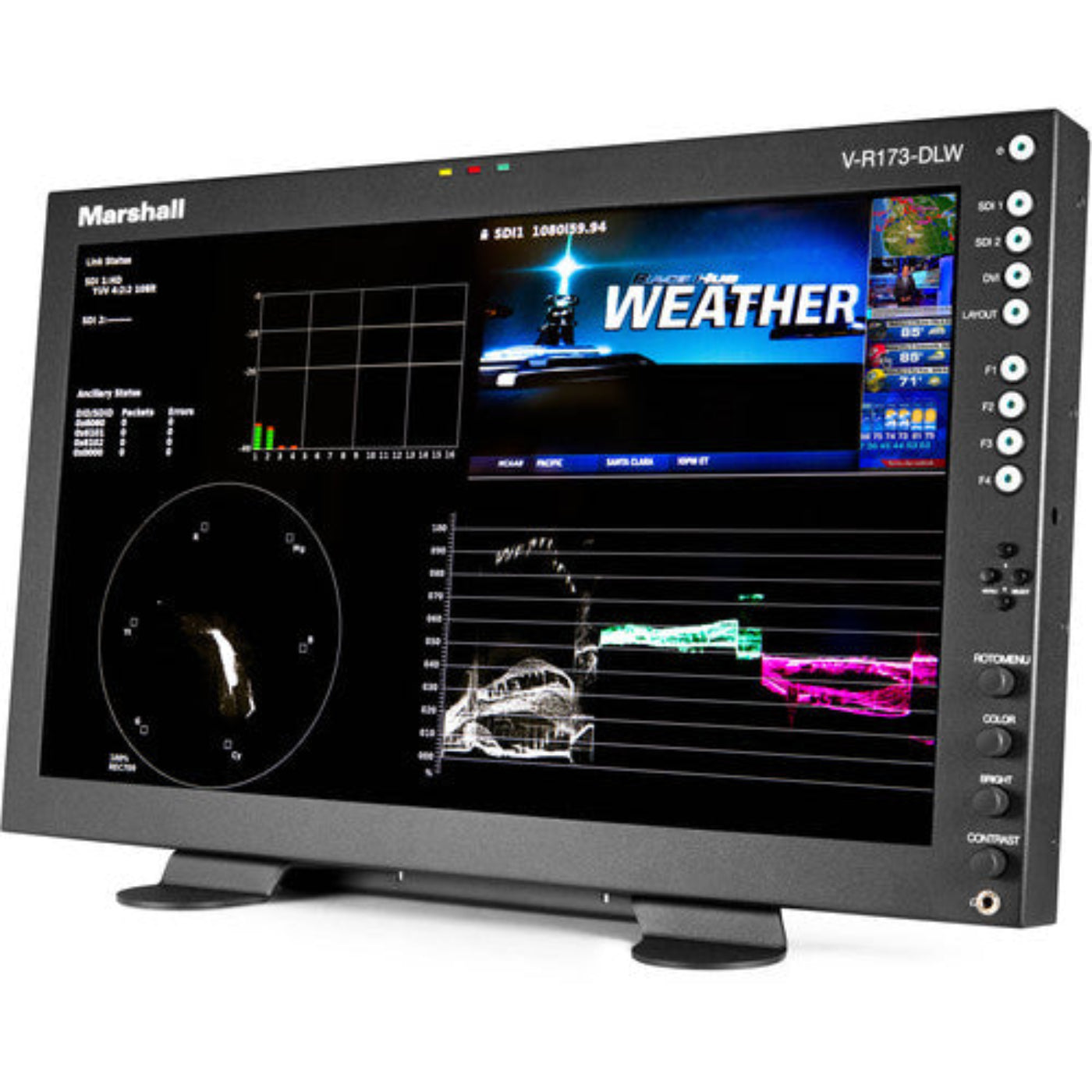

The DLW monitor series includes a real-time Waveform monitor and Vectorscope along with support for SDI, HD-SDI, 3G-SDI and Dual Link SDI. With the monitor in Multi mode, the monitor will break into four quadrants and display Signal Input information (Link Status), Embedded Audio levels, a Waveform monitor, a Vectorscope and live video simultaneously. Additional layouts provide the ability to view the Waveform monitor, Vectorscope, SDI Link status and Video individually.
Closed Captioning Decoding
The DLW monitor allows for decoding of Closed Captioning in the EIA-608 or EIA-708.
In-Monitor Display
OSD Features (On-Screen Display)
Embedded time code and an embedded audio presence indicator can be displayed on the screen in a variety of configurations. Closed Caption presence indication is also provided for 608/708 captions.
In-Monitor Display allows on-screen text and tally indication, controlled locally or remotely via a variety of industry standard protocols.
Color temperature adjustment, aspect ratio settings, blue-only mode, and monochrome mode are a few of the advanced features allowing the V-R173-DLW to be at home in any broadcast environment. Pixel-to-Pixel mode also allows native display of any incoming image format.
Four User-Definable Function Buttons
Four user-definable function buttons allow quick access to numerous settings and features including aspect ratio, monochrome mode, color temperature, and more.
Features
- Waveform Monitor
- Multi-mode, Vectorscope, and Waveform Monitor Mode
- 1920 x 1080 LED-Backlit Panel
- desktop stand
What our Experts Think
-
17" Native HD Display: Accurate color and sharp detail for professional monitoring.
-
Waveform & Vectorscope Built-In: Essential for precise exposure and color correction.
-
Rack-Mount & Desktop Ready: Flexible installation with included desktop stand.
-
Durable Professional Build: Reliable performance in studio and field environments.
-
Optimized Workflow: Enables real-time decision-making for editors, colorists, and live production teams.
Q&A
Q: What display quality does this 17″ monitor deliver?
A: Native Full HD 1920×1080 LCD panel with LED backlight, 400 cd/m² brightness and 600:1 contrast for accurate professional monitoring.
Q: What built‑in broadcast tools does it include?
A: Integrated waveform monitor and vectorscope visualizations plus digital audio meters help verify signal integrity in real time.
Q: Which signal inputs does it support?

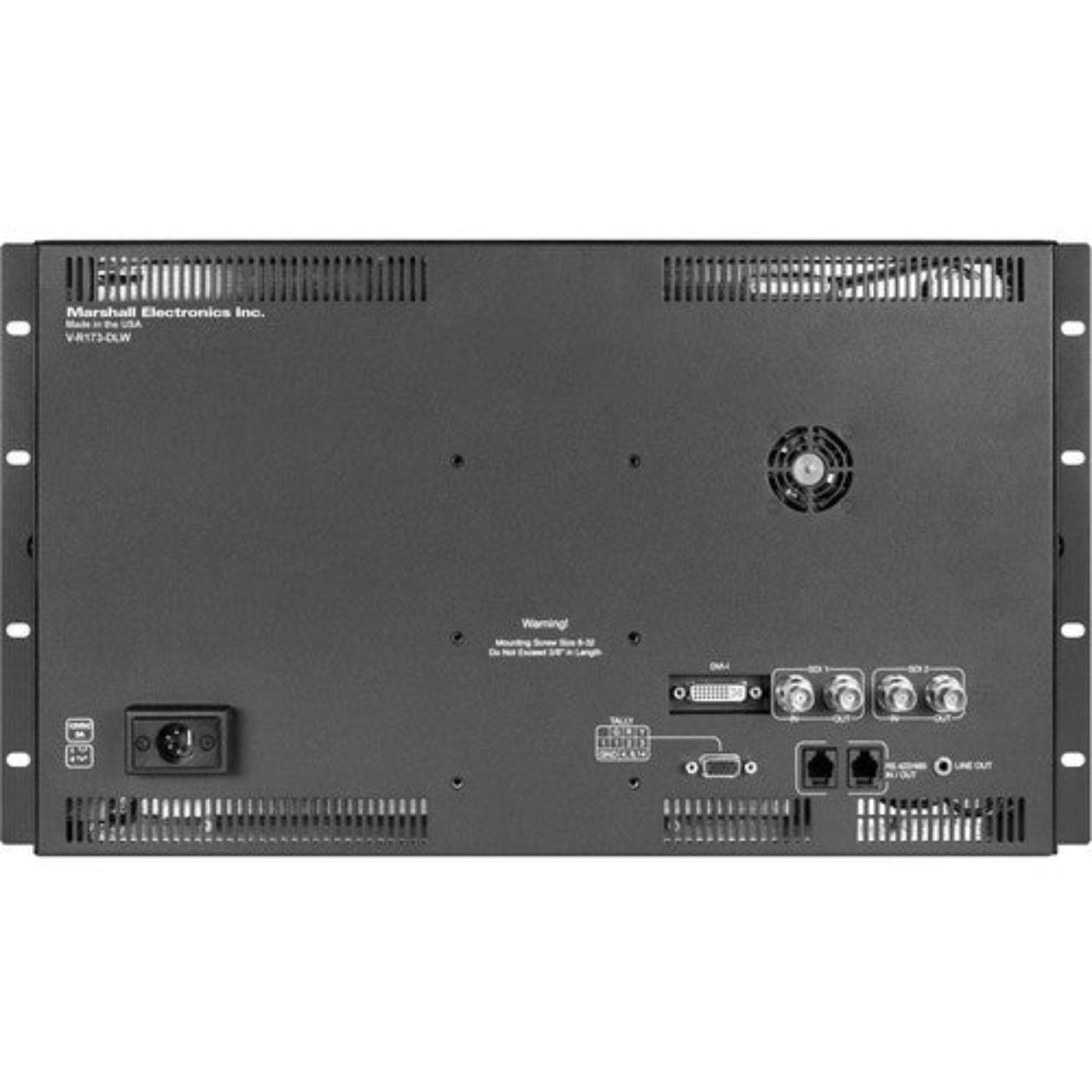

A: Dual 3G‑SDI/HD‑SDI/SD‑SDI with loop‑through and a DVI‑I port (supports HDMI without audio and analog video).
Q: What professional monitoring features are included?
A: Time‑code (LTC/VITC), closed caption decoding, IMD (in‑monitor display) text/tally, ancillary data window and audio metering.
Q: Does it support tally and remote control?
A: Yes — hard and soft tally LEDs plus RS‑485 support for external control protocols (Marshall, Image Video, TSL).
Q: What mounting and power options does it offer?
A: Ships with a desktop stand and supports rackmounting; runs on 12 VDC with included power supply.
Q: What workflows is it best for?
A: Ideal for broadcast, live production trucks, studios, and pro video environments requiring precise signal analysis and monitoring.
Maintenance Tips
-
Clean the screen gently with a soft, lint‑free microfiber cloth; avoid harsh chemicals to protect the LCD surface.
-
Dust vents and chassis regularly with compressed air to prevent heat buildup and maintain reliable performance.
-
Secure all video inputs/outputs (SDI, HDMI, power) to avoid signal dropouts and wear on connectors.
-
Update firmware when available to ensure waveform/vectorscope accuracy and system refinements.
-
Maintain stable power using a surge protector or UPS to protect internal electronics.
-
Avoid direct sunlight and moisture, which can shorten display life and affect calibration.
-
Calibrate color and scopes periodically to keep accurate monitoring for professional workflows.
