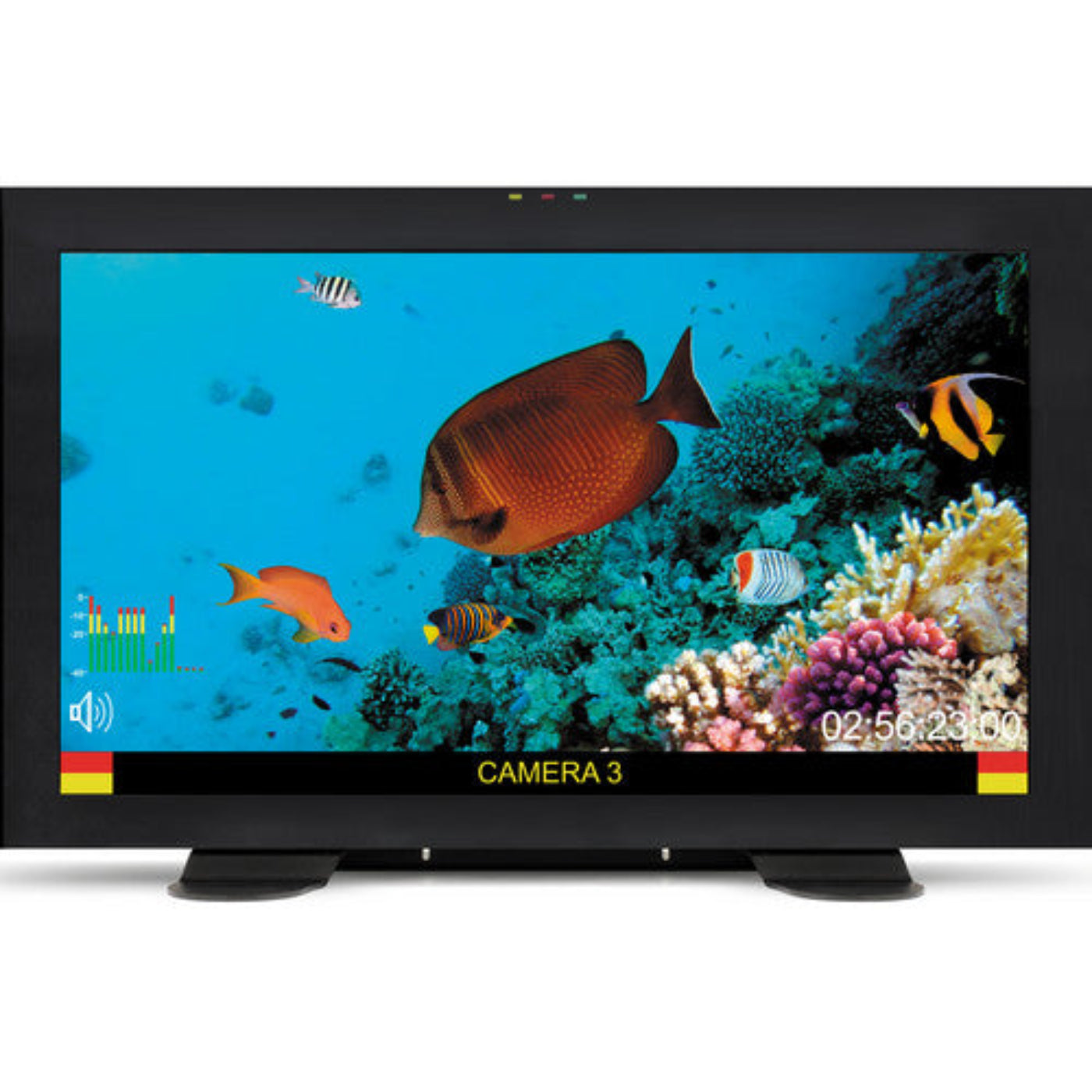

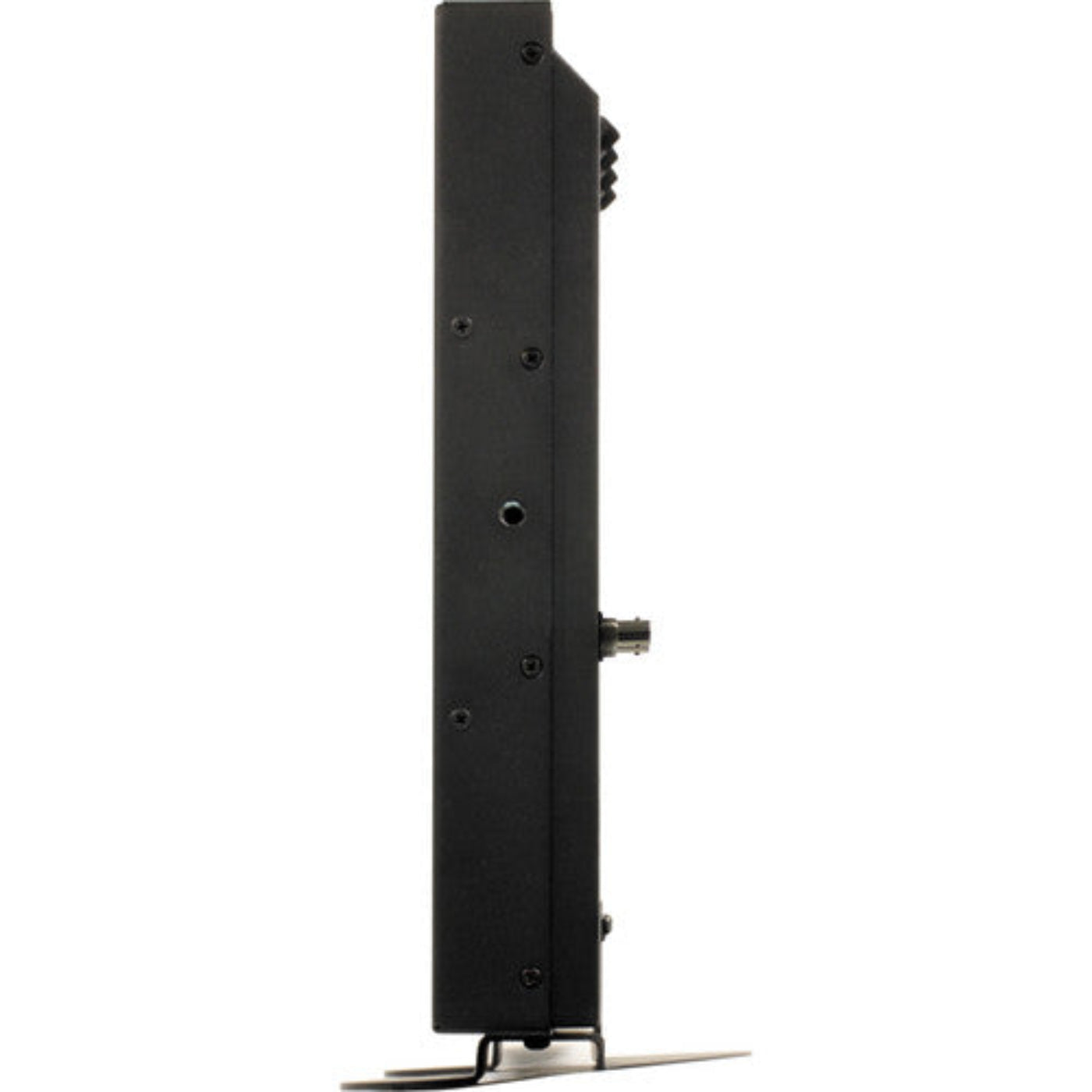

Marshall 17.3" IMD 3G monitor with Desktop Stand - V-R173-IMD-3GTE-DT
The V-R185-IMD-3GTE-DT 18.5" monitor is a cost-effective "all-in-one" solution for post production houses, broadcasters, and mobile units. This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall fl at panel monitor, while saving precious space. A variety of features are readily available including on-screen Video Time Code, three-color "Soft" Tallies, and Audio Presence Indicator.
Marshall IMD displays also offer a RotoMenu feature which allows fast, direct, and easy menu navigation. Marshall IMD monitors integrate easily with existing Tally systems and controllers, including Image Video, NVISION, TSL, and MEI (Marshall Electronics) protocols. This unit ships as a desktop monitor, but can be wall or ceiling mounted with an optional VESA adapter. It can also be rack mounted.
Features
- 3G-SDI Input with Loopthrough
- Supports NTSC, PAL, 720p, 1080i, 1080p
- 1920 x 1200 Native Resolution Panel
- Supports 23.98p, 23.98sF, & 24p. 24sF
- No need for external Under Monitor Display --
- "all-in-one" In-Monitor Display solution without added depth
- Supports the following protocols: Image Video / NVISION / TSL / MEI
- 1366 x 768 LED-backlit panel with wide viewing angles
- Unique RotoMenu feature for fast, direct, and easy menu navigation
- High resolution scaling / high quality deinterlacing
- Three-color on-screen "soft" tally indicators (Red / Green / Amber)
- Three LED color tally indicators (Red / Green / Amber)
- On-Screen Audio Presence Indicator
- On-Screen Video Time Code
- RS-422 / 485 connection with loop-through for control communication / IMD functionality
- Field upgradeable firmware capability via RS-422 / 485 port
- Direct access for adjustments of brightness, contrast, and color
- Multiple Frame Marker Overlays with Center Mark
- Pixel-to-Pixel mode
- Blue Gun for color adjustment
- Adjustment Settings Memory
What our Experts Think
-
17.3" Full HD Display – Provides sharp, detailed visuals for monitoring multiple video sources with clarity.
-
3G-SDI & HDMI Inputs – Supports professional broadcast and AV connectivity for versatile workflows.
-
Integrated Desktop Stand – Ready-to-use setup without additional mounting hardware, ideal for control rooms or desktops.
-
Durable, Reliable Design – Built for continuous operation in demanding production environments.
-
Expert Recommendation – Perfect for video editors, live production teams, and studios needing a compact, high-quality monitoring solution.
Q&A
Q: What is the Marshall V-R173-IMD-3GTE-DT?
A: A 17.3" IMD 3G monitor with a desktop stand, designed for professional video monitoring and multi-source viewing.
Q: Who is this monitor ideal for?
A: Perfect for broadcast studios, live production teams, post-production workflows, and video engineers.
Q: What makes it stand out?
A: Offers multi-input viewing in a large 17.3" format with IMD technology, combining versatility and high-quality video monitoring.
Q: Can it display multiple video sources simultaneously?
A: Yes, its IMD multi-view allows simultaneous monitoring of multiple 3G-SDI video feeds on a single screen.
Maintenance Tips
-
Screen Cleaning – Wipe with a soft, lint-free cloth; avoid harsh chemicals to protect the display.
-
Connection Check – Inspect 3G-SDI and power cables regularly for secure, stable connections.
-
Firmware Updates – Keep monitor firmware updated for optimal performance and signal compatibility.
-
Audio & Display Test – Periodically verify built-in audio and video signals.
-
Environmental Care – Avoid moisture, extreme temperatures, and direct sunlight to prolong lifespan.
