Unobtrusive ceiling-concealed design for short-run ductwork
Wide ranging external static pressure (0.14-0.60 in. WG)
Built-in condensate lift mechanism (up to 27-9/16”)
Auto fan speed mode
Optional FB Series filter boxes for easy access and service
Ideal for residential homes, retail shopping centers, larger classrooms, office complexes, conference rooms, ballrooms, fitness centers, and more
Multiple control options available: ○ kumo cloud® smart device app for remote access ○ Third-party interface options ○ Wired or wireless controllers
Includes
PEAD-A36AA8
NOT INCLUDED
36,000 BTU
38,000 BTU
up to 1800 sq ft
What our Experts Think

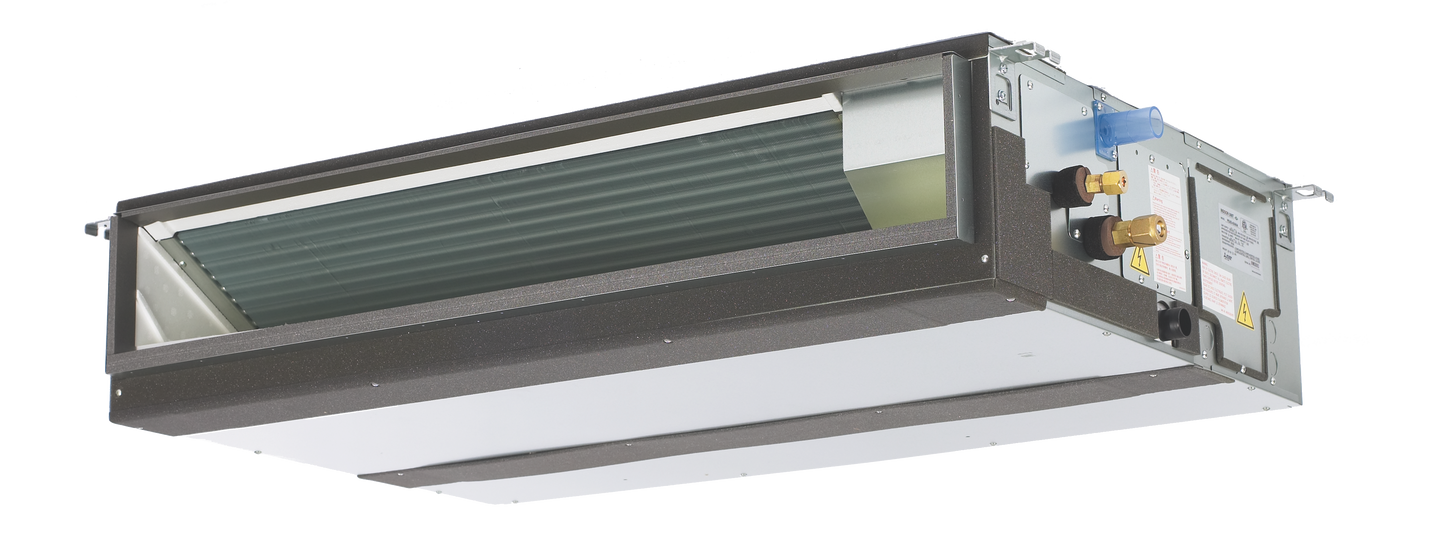

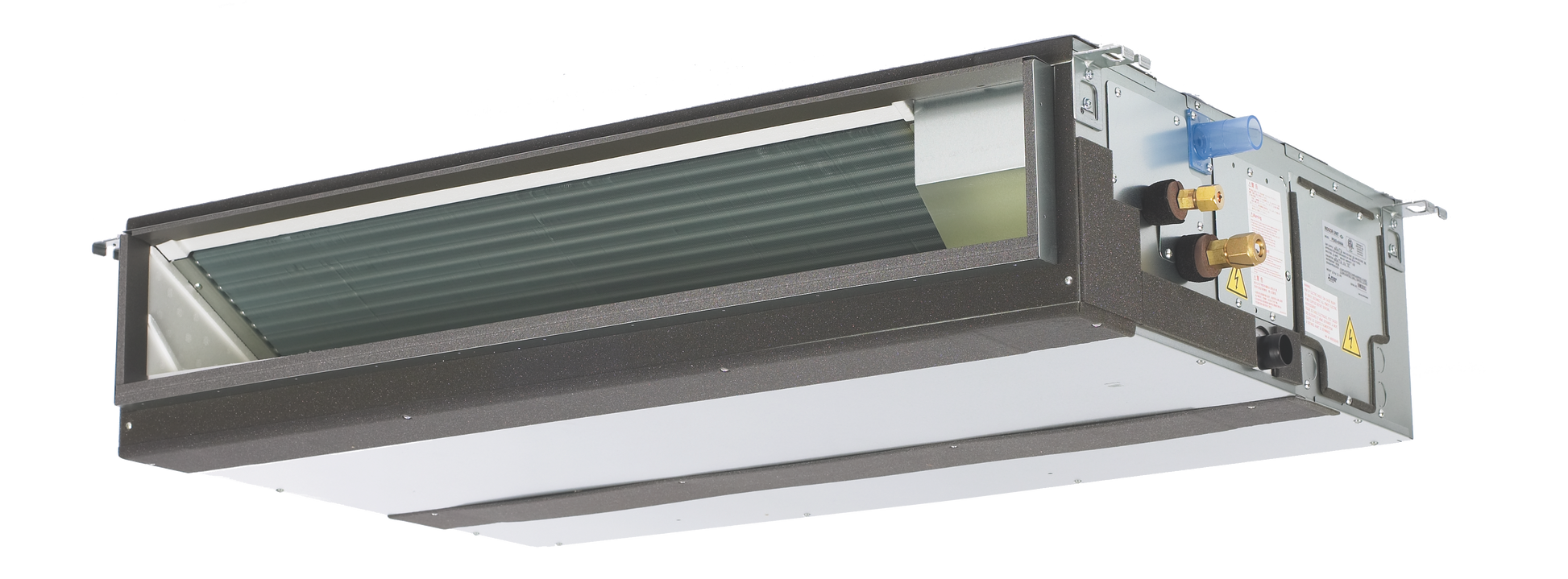

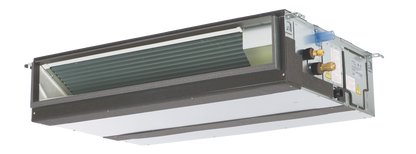

Perfect for Hidden Comfort: The Mitsubishi PEAD‑A36AA 36,000 BTU mid‑static horizontal ducted unit delivers smooth, whole‑room comfort while staying out of sight — ideal for homes and commercial zones with concealed ceilings or soffits.
Balanced Airflow & Pressure: Mid‑static design ensures even air distribution and consistent comfort across larger spaces without hot or cold spots.
Flexible Installation: Can be installed horizontally above ceilings or in attic/bulkhead spaces, offering versatility for custom duct layouts and retrofit projects.
Works with R‑Series Outdoor Units: Pairs with compatible Mitsubishi outdoor condensers (heat pump or cooling‑only) for efficient, zoned ducted systems.
Improved Seasonal Efficiency: Designed to help optimize overall system SEER2/HSPF2 performance when matched appropriately, lowering operating costs.
Quiet Air Delivery: Engineered for whisper‑quiet operation, keeping spaces comfortable without intrusive noise.
High‑Quality Filtration: Accepts high‑efficiency filters that help capture particulates and maintain healthier indoor air quality.
Smart Control Compatible: Works with remote thermostats and smart HVAC controls for easy scheduling and temperature management.
Installer‑Friendly Design: Accessible service panels and flexible duct connection options help simplify setup and maintenance.
Reliable Mitsubishi Engineering: Built with durable components and tested for long‑term performance in both residential and light commercial applications.
Q&A
Q: What is the Mitsubishi PVA‑A42AA7? A: It’s a 42,000 BTU (3.5 ton) multi‑position ducted air handler from Mitsubishi’s P‑Series designed to work with compatible outdoor units in cooling and heat pump systems for large homes or commercial spaces.
Q: What capacity does this air handler deliver? A: Rated up to 42,000 BTU cooling and up to ~54,000 BTU heating depending on matched outdoor heat pump conditions.
Q: What installation configurations are supported? A: Multi‑position installation allows horizontal (left/right) and vertical (up/down) mounting to fit tight or non‑standard spaces with ease.
Q: What airflow and performance does it offer? A: Delivers 1,040–1,485 CFM airflow across three fan speeds and selectable static pressures for ducted systems.
Q: What energy and motor features does it include? A: Features a totally enclosed ECM blower motor for efficient, quiet operation with 18 SEER performance when matched with the right outdoor unit.
Q: What construction and quality features are included? A: 1″ R4.2 insulation reduces condensation, and a positive pressure cabinet with low leakage improves efficiency; the blow‑through design allows easier coil access and cleaning.
Q: What refrigerant and connections does it use? A: Designed for systems using R‑410A refrigerant with 3/8″ liquid and 5/8″ gas connections.
Q: What electrical and physical specs matter? A: Operates on 208/230 V single‑phase power with a 5.63 A MCA, and the unit measures about 59‑1/2″ H × 25″ W × 21‑5/8″ D and weighs ~172 lb.
Q: What options and add‑ons are available? A: Optional electric heat kits, humidifier/ERV controls, and smart control interfaces can be added for enhanced comfort and integration.
Maintenance Tips
Clean or replace air filters monthly to maintain airflow and indoor air quality.
Inspect coils and blower assembly for dust or debris buildup and clean as needed.
Check condensate drain lines to prevent clogs and water damage.
Ensure duct connections are secure to avoid air leaks and maintain efficiency.
Keep the surrounding area clear for proper airflow and maintenance access.
Monitor for unusual noises, reduced airflow, or inconsistent temperatures, which may indicate maintenance is needed.
Schedule annual professional HVAC servicing to optimize performance and extend unit lifespan.
