Raimondi Raizor MkII PLUS Large Format Tile Cutting System - TC10RMK2PLUS

Raimondi Raizor MkII PLUS Large Format Tile Cutting System - TC10RMK2PLUS

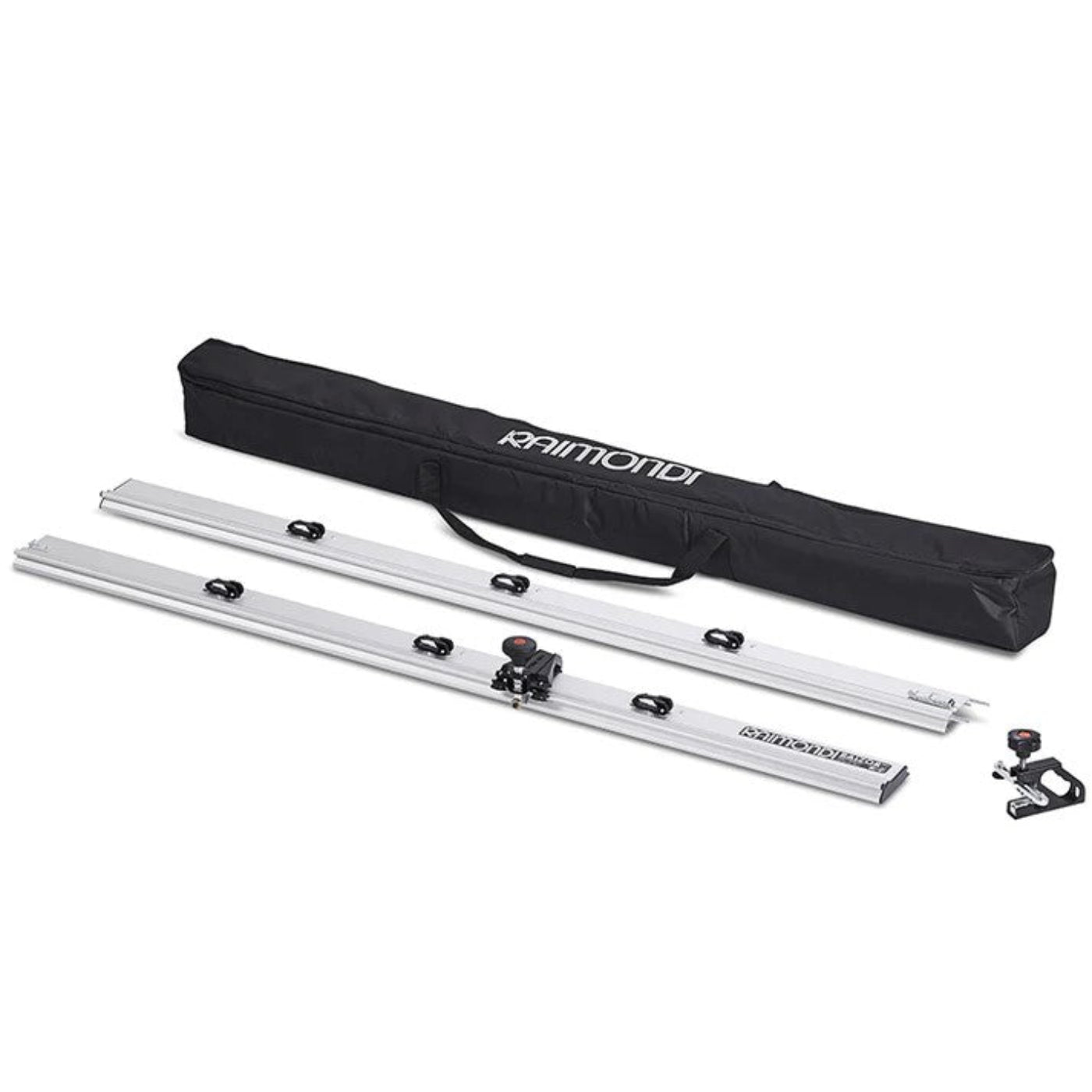

Raimondi Raizor MkII PLUS system utilizes a titanium scoring wheel and sturdy rail system to score thin panel tiles and heavy duty pliers that will snap delicate material without damages. The rail system is equipped with suction cups that will keep your system attached without marking the material being cut. The modular design allows for extensions to be added for even larger tile.

Features

• Rail cutting system for large format tiles
• *Not Compatible with the first-gen Raizor system (TC10RAIZOR)*

• Two lightweight, aluminum 5.2' (160 cm) rails easily connect together

• Three (3) stain-free suction cups on each rail will not mark delicate or expensive tile
• Suction cup handles perform a 180° movement and offer greater grip thanks to their double-lip profile
• MkII PLUS scoring unit has four wheel bearings fitting snugly on either side of the rail for a smooth and steady scoring
• Scoring wheel easily adjusted with threaded knob on top

• The 3/4" (20 mm) titanium cutting wheel is equipped with an integrated bearing for maximum smoothness, extreme precision and effectiveness and easy and quick replacement

• Replacement scoring wheels also available (ref.)
• Premium pliers provided for max thickness of 1/8"-5/8" (3-15 mm) tile
• The padded bag protects the rails and allows for easy carrying and has an outside pocket for personal items and/or tools

What our Experts Think

• Extended Large‑Format Cutting: Engineered to cut tiles and slabs up to ~330 cm (10.8′) with precision, handling today’s biggest formats with ease.
• Premium Scoring & Breaking: Includes high‑quality PREMIUM pliers for tiles 3–15 mm thick and a titanium‑coated scoring wheel for smooth, accurate scoring and reduced chipping.
• Stable Suction‑Secured Rails: Dual extruded aluminium guide rails with six dual‑lip suction cups ensure the system stays locked in place for consistent, reliable cuts.
• Increased Structural Rigidity: Reinforced rail profiles provide ~28% greater stiffness, reducing flex and improving cutting accuracy even on textured surfaces.
• Portable & Jobsite Ready: Lightweight rail system and padded carrying bag make transport, setup, and storage fast and easy.
• Expandable System: Optional extensions and power accessories (like Power‑Raizor units) allow longer cuts and angled/diamond blade cutting for advanced applications.

Q&A

Q: What is this tool used for?
A: Advanced cutting system designed for precise, clean cuts on large-format tiles and slabs.

Q: What size tiles can it handle?
A: Ideal for oversized ceramic, porcelain, and natural stone tiles, including extra-large slabs.

Q: Is it portable?
A: Yes, modular and lightweight design allows easy transport and on-site setup.

Q: What is the cutting mechanism?
A: Smooth sliding rail with reinforced scoring wheel for accurate, effortless cutting.

Q: Who is this cutting system ideal for?
A: Professional tilers, contractors, and installers working with large or heavy-format tiles requiring precision.

Maintenance Tips
