Tuxedo WB-953-B WHEEL BALANCER

Overview

The Tuxedo WB-953-B Wheel Balancer is built for shops that want fast, accurate balancing without complicated setup or steep learning curves. With a user-friendly interface, precision electronics, and support for both car and motorcycle wheels, it delivers the kind of reliable performance that keeps vehicles rolling smoothly and customers coming back.

Designed for everyday shop use, the WB-953-B combines simple keypad data entry, clear LED indicators, and multiple balancing modes so technicians can move quickly from wheel to wheel. From standard steel wheels to large alloy rims, this machine is ready to handle the variety that modern service bays see every day.

Key Highlights

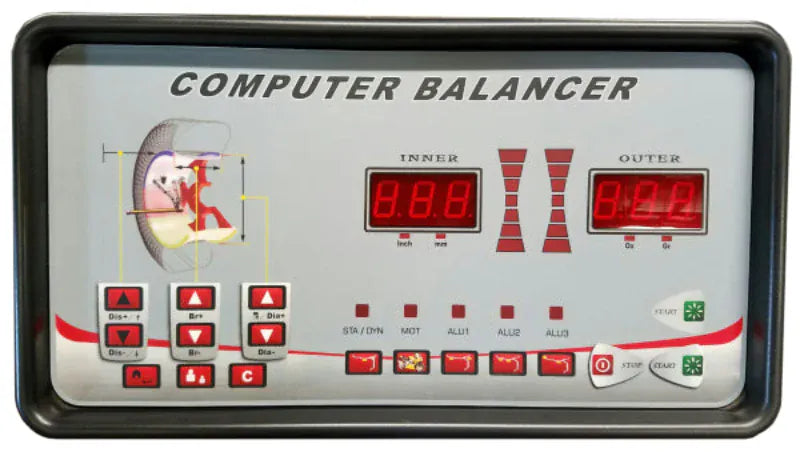

• User-Friendly Interface: LED touch-panel keypad with easy-to-read icons simplifies setup and balancing functions.
• Large Wheel Capacity: Handles wheels up to 39" diameter and rims up to 24".
• Multi-Vehicle Capability: Standard car and motorcycle balancing modes built into the system.
• Multiple Balancing Modes: Static, dynamic, and three ALU modes for alloy wheel balancing.
• Self-Calibrating System: Built-in diagnostics and calibration help maintain accuracy and reduce downtime.
• Integrated Measurement Tool: Retractable measurement arm makes distance and diameter input quick and precise.
• Electronic Braking: Automatically slows the wheel after the balancing cycle for smoother operation.

Smart Design for Busy Shops

The WB-953-B is engineered to keep technicians efficient throughout the day. A heavy-duty 36mm balancing shaft supports a wide range of wheel sizes, while the speed-nut mounting system makes securing wheels quick and effortless. The integrated centering spring helps position wheels properly on the shaft, reducing setup time and improving accuracy.

Around the machine, thoughtful storage features keep tools and weights within reach. A large multi-pocket weight shelf and built-in storage pegs ensure that cones, calipers, and balancing weights stay organized instead of scattered across the shop.

Operator-Friendly Features

• Multi-user functionality allows two technicians to operate with different settings.
• Speed-nut wheel mounting enables quick and secure wheel installation.
• Integrated centering spring helps position wheels correctly on the spindle.
• Electronic braking system slows the wheel after each balancing cycle.
• Retractable measurement arm for accurate distance and diameter entry.

Built-In Storage & Organization

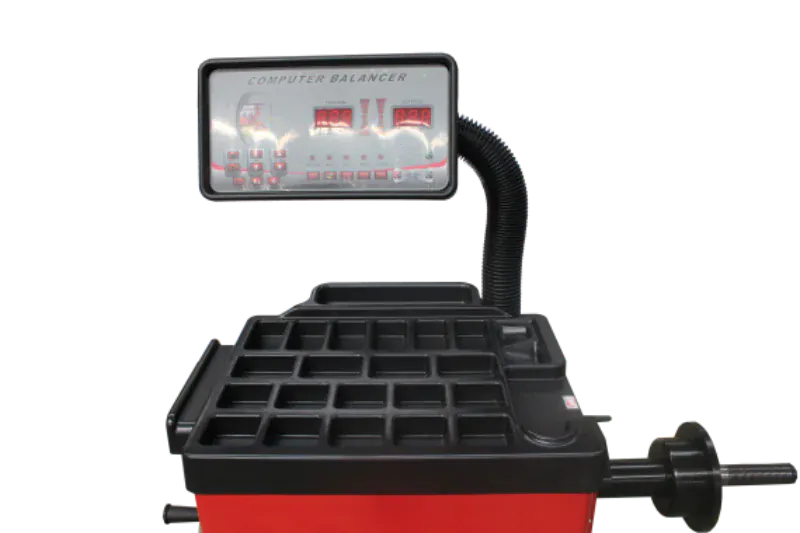

• 23 articulated storage pockets for wheel weights, cones, and accessories
• Deep weight storage trays (over 1.5" deep)

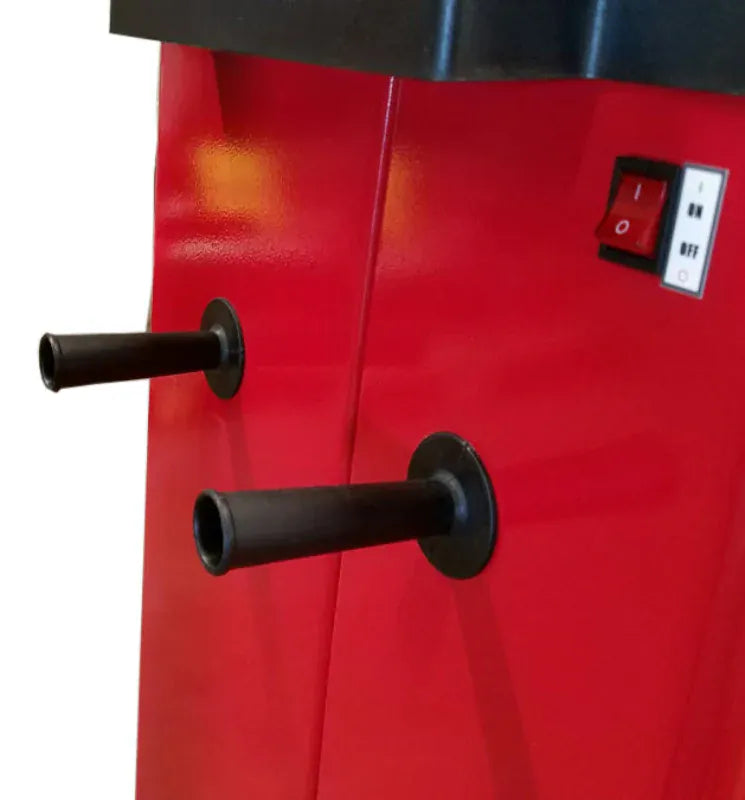

• Side-mounted storage pegs for cones and measurement tools

Specifications

• Model: WB-953-B
• Data Entry: Keypad

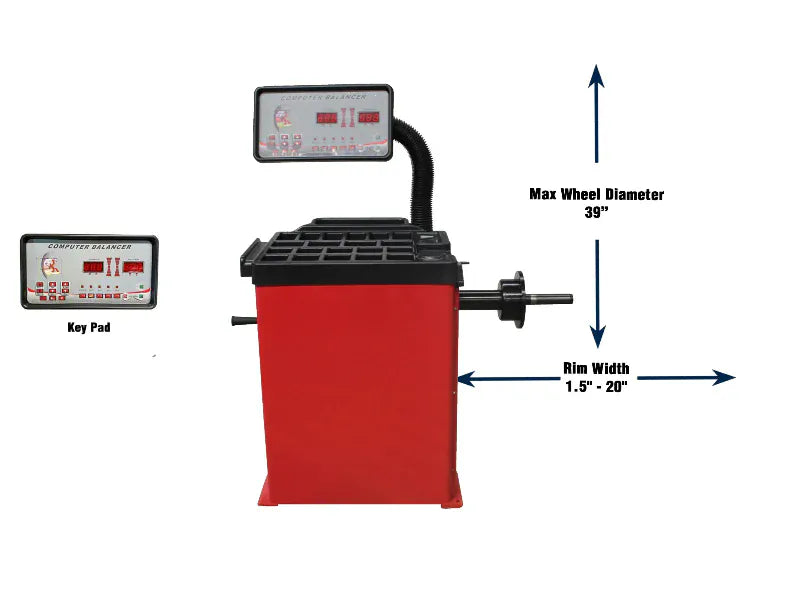

• Max Wheel Diameter: 39"
• Rim Width: 1.5" – 20"
• Rim Diameter: 10" – 24"
• Wheel Weight Capacity: 150 lbs
• Balancing Accuracy: 1 gram
• Power: 110V – 15 Amp – Single Phase
• Shipping Weight: 305 lbs

Bottom Line

The Tuxedo WB-953-B delivers the speed, accuracy, and ease of use that modern tire service demands. With multi-mode balancing, intuitive controls, and durable shop-ready construction, it’s a dependable solution for handling everything from everyday passenger vehicles to motorcycles and performance wheels.
