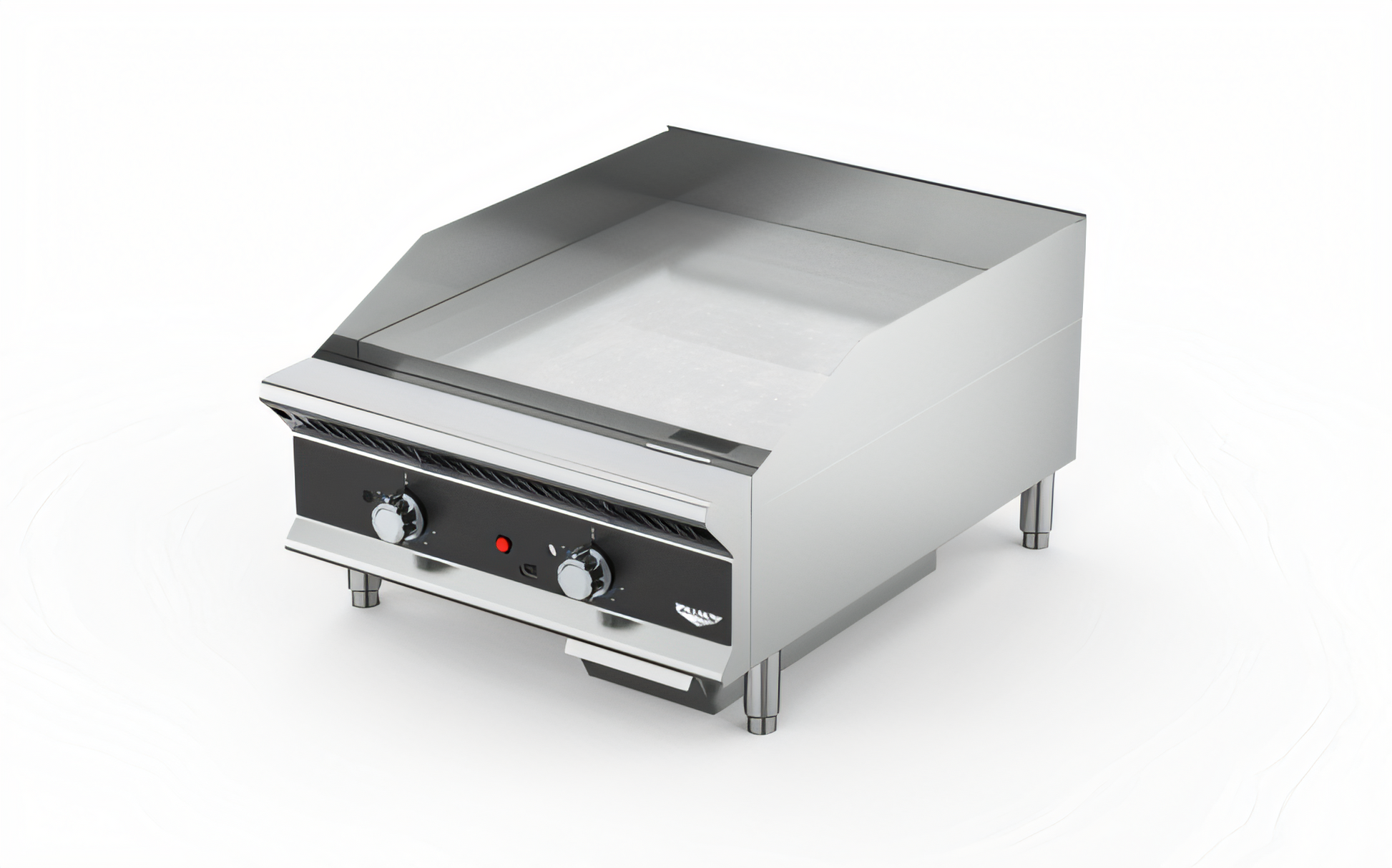

Vollrath Heavy-Duty Countertop Gas Griddles
Manual & Thermostatic • ETL, ETL Sanitation & cETL Listed
Built for the busiest steak houses, diners and pubs, Vollrath Heavy-Duty Gas Griddles deliver relentless performance shift after shift.
A massive 1 inch (2.5 cm) polished steel plate, individually controlled 12 inch heating zones and stainless-steel U-shaped burners give you the fire-power and precision to sear, sauté or hold with confidence.
Key Features
- 30,000 BTU stainless-steel U-shaped burners under every 12 inch section for fast recovery and even heat.
- Natural-gas-ready out of the box; propane conversion kit included.
- Massive 1 in (2.5 cm) thick polished steel plate for superior heat retention.
- Zero-clearance sides save valuable counter space—perfect for tight cooking lines.
- Lifetime-guaranteed metal control knobs stand up to daily abuse.
- 2 mm stainless back & side splashes keep grease where it belongs.
- Divided full-width drip pan (two pans on 60" & 72" units) minimizes messy sloshing.
- Bull-nose front edge protects the operator from burns.
- Heavy-duty legs with easy height adjustment.
- Standard ¾" NPT rear gas connection speeds installation.
- Choose manual controls for budget-minded simplicity or thermostatic controls for set-and-forget surface temperatures.
Model Selector & Specifications
| Cooking Width |
Manual Model |
Thermostatic Model |
Cooking Surface (W × D) |
Total BTU |
Burners |
| 24" (61 cm) |
GGHDM-24 |
GGHDT-24 |
23.8" × 24.6" (60.5 × 62.5 cm) |
60,000 |
2 |
| 36" (91 cm) |
GGHDM-36 |
GGHDT-36 |
35.6" × 24.6" (90.4 × 62.5 cm) |
90,000 |
3 |
| 48" (122 cm) |
GGHDM-48 |
GGHDT-48 |
47.4" × 24.6" (120.4 × 62.5 cm) |
120,000 |
4 |
| 60" (153 cm) |
GGHDM-60 |
GGHDT-60 |
60.0" × 24.6" (152.4 × 62.5 cm) |
150,000 |
5 |
| 72" (183 cm) |
GGHDM-72 |
GGHDT-72 |
71.8" × 24.6" (182.4 × 62.5 cm) |
180,000 |
6 |
Installation & Clearances
- Install next to non-combustible surfaces only; maintain 6" (15 cm) rear clearance.
- Griddle must sit on included 4" (10 cm) legs to ensure proper airflow.
- Provide adequate room for ventilation and service access.
Certifications
- ETL (ANSI STD Z83.11-2016)
- ETL Sanitation (NSF/ANSI STD 4)
- cETL (CSA STD 1-8-2016)
Important: Gas equipment must be installed by a qualified technician and checked for leaks before first use.
Warranty
Covered by Vollrath’s 1-year standard warranty against defects in materials and workmanship. Metal control knobs are backed by a limited lifetime guarantee.
