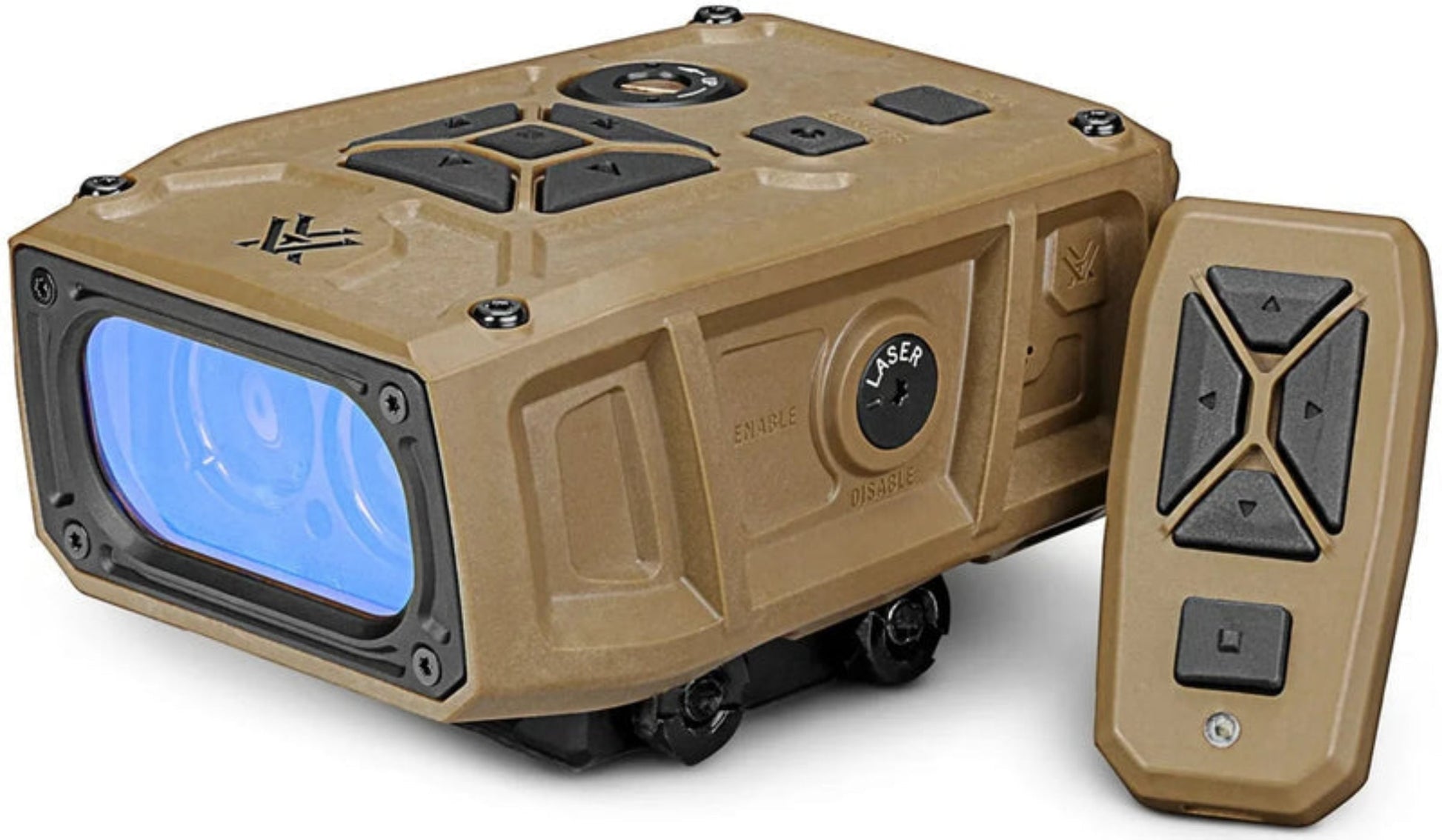

Vortex Optics Impact 4000 Ballistic Rail-Mounted Laser Rangefinder, Tan - LRF-IMP4000
Shoot farther, faster, and more precise. For long-range competitors and open-country hunters, the Impact 4000 is the all-in-one ballistic problem solver.
Features
- Picatinny Mount. Mounts to any picatinny-style rail or rings with a diving board mount.
- Quick and Reliable Zero. Easy to zero and reliably holds it zero even under heavy recoil.
- Convenient Wind/Drop Solutions. Easy to read display of wind/drop solutions and the ability to make adjustments while in the shooting position.
- Integrated GeoBallistics Solver. Equipped with the accurate GeoBallistics Solver backed by a full, up-to-date bullet library.
- Customize Ballistic Profiles. Customize profiles or use one of the ten preloaded profiles.
- On-Board Environmental Sensors. On-board compass and exposed temperature, pressure, and humidity sensors.
- Wind Bearing Capture Mode. Manually enter speed and direction with patented Wind Bearing Capture Mode.
- Built-in Range Card Generator. Ability to create and save up to ten range cards with drop and wind corrections.
- Connect with Vortex Relay. Seamlessly connect to the GeoBallistics App for quick customization and to the included Bluetooth Remote for easy adjustments without leaving the position.
- Pairs with Third-Party Devices. Connects via the GeoBallistics App with popular weather devices or local weather stations.
Specifications
| Max Range (Reflective) |
Up to 4000 yards |
| Max Range (Tree) |
Up to 2500 yards |
| Max Range (Deer) |
Up to 1500 yards |
| Minimum Range |
5 yards |
| Accuracy |
±0.5 yards @ 100 yards |
| Length |
4.6 inches |
| Height |
2.5 inches |
| Width |
3.2 inches |
| Weight |
16.0 oz |
What our Experts Think
-
All-in-one ballistic solution – Combines ranging, environmental data, and ballistic calculations directly on your rifle for true “shoot-ready” performance
-
Extreme long-range capability – Delivers accurate ranging up to 4000 yards, making it ideal for ELR and precision shooting
-
Stay on target at all times – Rail-mounted design with remote control lets you range and adjust without breaking shooting position
-
Advanced GeoBallistics® integration – Built-in solver with customizable profiles and bullet library for precise drop & wind corrections
-
Real-time environmental awareness – Onboard sensors (temperature, pressure, humidity, compass) improve shot accuracy in changing conditions
-
Field-proven precision tools – Features like Wind Bearing Capture Mode and range card generator enhance decision-making in real scenarios
-
Rugged, mission-ready build – Shockproof, waterproof, and designed to hold zero under recoil
-
Smart connectivity – Bluetooth app integration allows profile management and syncing with weather devices for advanced shooting data
Q&A
Q: What is the Vortex Impact 4000 designed for?
A: It’s a rail-mounted ballistic laser rangefinder built for long-range shooting, delivering real-time range, wind, and drop data without leaving your shooting position.
Q: What is the maximum ranging capability?
A: It can range up to 4000 yards (reflective targets), with practical ranges of ~2500 yards (trees) and ~1500 yards (game).
Q: How does the ballistic system work?
A: It uses the integrated GeoBallistics® solver with a full bullet library and customizable profiles for precise firing solutions.
Q: Does it provide real-time environmental data?
A: Yes, built-in sensors measure temperature, pressure, humidity, and compass direction for accurate ballistic calculations.
Q: Can it be mounted on a rifle?
A: Yes, it attaches directly to Picatinny rails or diving board mounts, enabling true hands-on shooting workflow.
Q: Does it show wind and drop corrections?
A: Yes, it displays wind holds and bullet drop solutions directly on-screen for quick adjustments.
Q: Is it customizable for different calibers?
A: Yes, you can create custom profiles or use 10 preloaded ballistic profiles for common cartridges.
Q: Does it connect to external devices?
A: Yes, it supports Bluetooth connectivity with the GeoBallistics app and compatible weather devices.
Q: How durable is it?
A: It’s rugged, waterproof, fogproof, and shockproof, designed to hold zero even under recoil.
Q: What is included in the box?
A: Includes a Bluetooth remote, mounting kit, tool kit, batteries, lens cloth, and protective cover.
Maintenance Tips
-
Keep lens clean for accuracy: Use a microfiber cloth and lens-safe cleaner—dust or smudges can affect precise ranging performance.
-
Maintain secure mounting: Regularly check Picatinny rail attachment to ensure consistent zero and reliable ballistic calculations.
-
Protect sensors & housing: Built-in environmental sensors (temperature, pressure, humidity) should be kept free of debris for accurate ballistic data.
-
Battery care: Replace CR123A battery as needed and remove during long-term storage to prevent leakage or power issues.
-
Avoid harsh impacts: While rugged, impacts can misalign the laser or affect zero retention under recoil.
-
Dry after exposure: After rain or humidity, wipe down and air-dry to preserve electronics and internal components.
-
Check zero & calibration: Periodically confirm zero and ballistic profiles to ensure accurate drop and wind solutions.
-
Keep firmware/app updated: If using ballistic apps or Bluetooth remote, ensure updates for optimal performance and compatibility.
