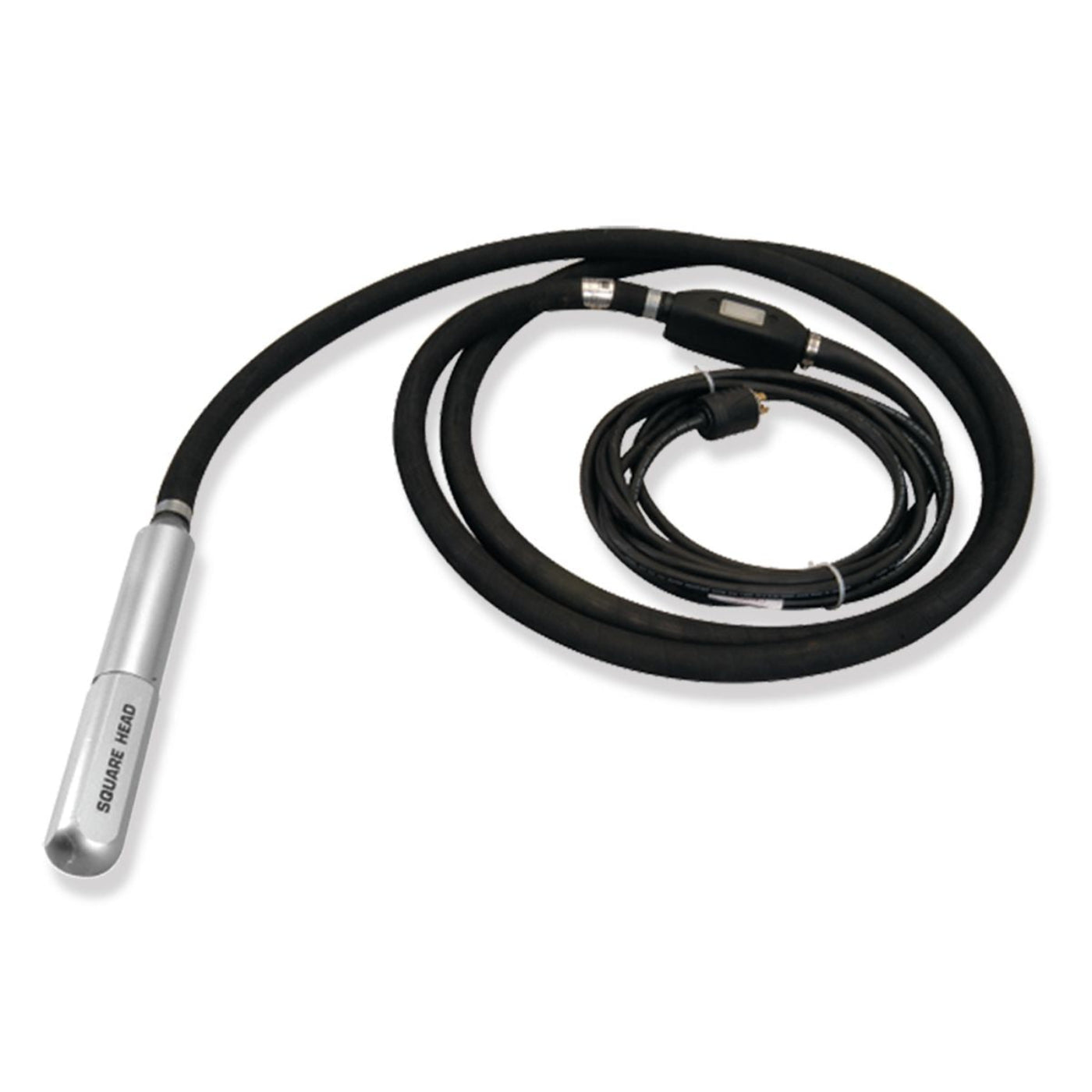

WYCO 2-3/8" Square Vibrator Head, #1600; 6', 16', 21', 30' HOSE - WYCO SELECT-CYCLE - W416-056
What our Experts Think
-
Heavy‑duty consolidation force: The WYCO 2‑3/8″ Square Vibrator Head, #1600 – W416‑056 family delivers ~1,600 lb force @ ~10,800 VPM, making it exceptionally effective at removing air pockets and densifying fresh concrete in demanding pours.
-
Square Head advantage: The patented Wyco Square Head™ design offers up to ~27 % more surface area and faster consolidation than round heads, especially in low‑slump or stiff mixes, and runs cooler with longer head life.
-
Flexible hose options: Available with 6′, 16′, 21′, or 30′ hoses, this lineup adapts to job size and reach — from tight footing pours to large slab sections — without sacrificing vibration effectiveness.
-
Reliable high‑cycle performance: Designed for consistent speed and uniform force when used with compatible electric motors and Select‑Cycle converters, ensuring reliable compaction across long pours or variable loads.
-
Built for tough job sites: Hardened steel construction and robust internal components stand up to frequent use and heavy concrete conditions, supporting long service life on commercial and industrial projects.
-
Versatile pairing: Works with standard Wyco electric or engine power units and Select‑Cycle converters, letting contractors match motor setup to power availability and pour scale.
Q&A
Q: What is the WYCO 2‑3/8″ Square Vibrator Head #1600?
A: It’s a high‑cycle concrete vibrator head with a 2‑3/8″ square design that delivers strong 1,600 lb force at ~10,800 vibrations per minute for efficient internal consolidation of freshly poured concrete.
Q: What hose length options are available?
A: This model is offered with flexible shaft hoses of 6 ft, 16 ft, 21 ft, or 30 ft, letting crews reach deep or high‑volume pours without changing heads.
Q: Why is the Square Head beneficial?
A: The square head design increases surface area and provides a constantly changing vibration pattern that consolidates concrete faster and more thoroughly than round heads, especially in low‑slump mixes.
Q: What power setup does it require?
A: Designed for 230 V AC, 3‑phase high‑cycle power, typically used with a compatible WYCO high‑cycle generator or Select‑Cycle converter to maintain consistent speed under load.
Q: What is the WYCO SELECT‑CYCLE® referred to in the model?
A: The Select‑Cycle converter lets operators select vibration speeds (e.g., 8,000, 10,800, and 12,000 VPM) and adapt single‑phase power to the 3‑phase requirements of high‑cycle vibrators for optimized consolidation.
Q: What applications is this vibrator head best for?
A: Ideal for commercial slabs, footings, slabs‑on‑grade, box culverts, walls, and any job needing high‑efficiency internal vibration to eliminate air voids and deliver uniform concrete density.
Maintenance Tips
-
Disconnect Power Before Maintenance: Always unplug or disconnect the power source before handling the vibrator head or hose.
-
Inspect Head & Hose for Damage: Check the vibrator head and hose for cracks, wear, or fraying before each use. Replace any damaged components immediately.
-
Clean After Each Use: Remove concrete residue from the head and hose to prevent buildup and ensure smooth operation.
-
Check Connections & Clamps: Ensure the hose fittings and quick-connect couplings are secure to prevent leaks or disconnection during operation.
-
Lubricate Moving Parts if Applicable: Lightly oil any pivot points or threaded connections to prevent seizing.
-
Store Properly: Coil hoses without kinks and store the vibrator head in a dry location to prevent corrosion and deformation.
-
Avoid Overuse: Operate within the manufacturer’s recommended time and power limits to prevent overheating or premature wear.
