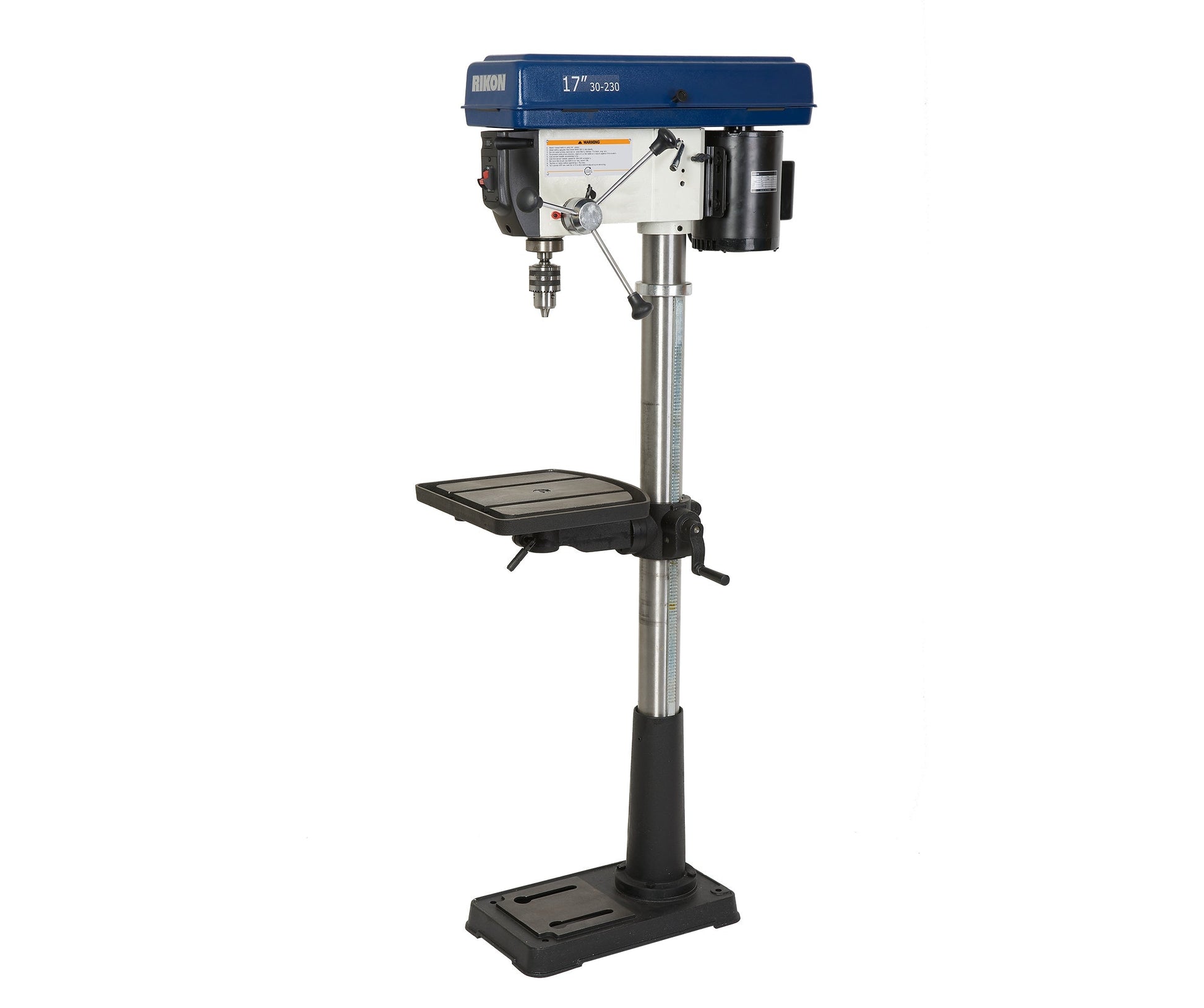

RIKON 17" Floor Model Drill Press - 30-230
17โ Floor Drill Press #30-230 is a workhorse. It has ample power to drive the largest twist drills, forstner bits, hole saws, circle cutters or other types and styles of drill bits. Adjustable, cast iron table with trough perimeter gives great support for wood and metal drilling work. 16 speed ranges produce all of the RPMs needed to match every material being bored.
Features
- Powerful 1 HP TEFC Motor
- 16 Spindle Speeds
- Clutch Depth Stop
- Cast Iron Table
Specifications
| Motor Horsepower |
1 HP TEFC |
| Motor Amps |
13.5 |
| Motor Volts |
120V, 60Hz |
| Motor RPM |
1,720 |
| Swing |
17โ |
| Chuck Size |
5/8โ |
| Chuck Taper |
JT3 |
| Drilling Capacity |
1โ |
| Spindle Travel |
3-1/8โ |
| Spindle Taper |
MT2 |
| Head Rotates |
360ยฐ |
| Head Tilts |
- |
| Speeds |
16 |
| Speed Range (RPM) |
200 โ 3,630 |
| Quill Diameter |
66mm |
| Table Dimensions |
14โ x 14โ |
| Table Tilts |
90ยฐ |
| Table Rotates |
360ยฐ |
| Maximum Chuck to Table |
25-1/4โ |
| Maximum Chuck to Base |
44-13/16โ |
| Column Diameter |
80mm |
| Overall Height |
64-3/8โ |
| Overall Base Size |
17-1/2โ x 22-1/2โ |
| Overall Net Weight |
188 lbs. |
What our Experts Think
-
Powerful Drilling Performance โ The RIKON 17" Floor Model Drill Press - 30-230 features a 1 HP TEFC motor, providing the power needed to drive large drill bits, Forstner bits, and hole saws through hardwood, softwood, and metal.
-
Wide Speed Range for Different Materials โ With 16 spindle speeds ranging from about 200โ3,630 RPM, users can easily match drilling speed to the material and bit size for precise results.
-
Precision Depth Control โ The clutch depth stop system allows quick and repeatable drilling depths, making it ideal for production tasks, joinery work, and consistent hole drilling.
-
Heavy-Duty Cast Iron Stability โ Built with a solid cast-iron table, base, and head, the machine minimizes vibration and improves drilling accuracy during demanding operations.
-
Large Adjustable Work Table โ The 14โณ ร 14โณ table tilts and rotates 360ยฐ, providing flexible positioning for large workpieces and angled drilling tasks.
-
Professional Shop Capacity โ With a 17โณ swing, 5/8โณ chuck, and 3-1/8โณ spindle travel, this floor model drill press handles larger projects and deeper drilling than most benchtop machines.
-
Expert Verdict โ A robust, workshop-ready floor drill press designed for woodworkers, metalworkers, and serious DIY users who need reliable power, precision, and durability.
Q&A
Q: What is the RIKON 30-230 17" Floor Drill Press used for?
A: It is designed for precise drilling in wood, metal, and plastics, making it ideal for woodworking shops, furniture making, and DIY workshop projects.
Q: What motor power does the RIKON 30-230 have?
A: The drill press features a powerful 1 HP TEFC induction motor that delivers smooth and reliable performance for heavy drilling tasks.
Q: How many speed settings does the drill press offer?
A: It includes 16 spindle speeds ranging from 200 to 3,630 RPM, allowing users to match the speed to different materials and drill bit sizes.
Q: What is the drilling capacity of the RIKON 30-230?
A: The drill press has a 1" drilling capacity and a 3-1/8" spindle travel, making it suitable for both light and heavy drilling applications.
Q: What size chuck does this drill press use?
A: It comes with a 5/8" keyed chuck with JT3 taper, providing secure holding for various drill bits and accessories.
Q: Does the table adjust for different angles and positions?
A: Yes. The 14" ร 14" cast-iron table tilts up to 90ยฐ and rotates 360ยฐ, allowing flexible positioning for angled drilling and large workpieces.
Q: What features improve accuracy and repeat drilling?
A: The drill press includes a clutch depth stop, rack-and-pinion table height adjustment, and rigid cast-iron construction to ensure precision and stability.
Q: Is the RIKON 30-230 suitable for professional workshops?
A: Yes. With its 17" swing, heavy cast-iron build, and 188-lb stable design, it is well suited for both professional shops and serious woodworking enthusiasts.
Maintenance Tips
-
Keep the Machine Clean: Remove dust and chips from the table, motor housing, and moving parts using a dry brush or compressed air to maintain smooth operation.
-
Protect the Table & Column: Apply a light coat of paste wax on the cast-iron table and column to prevent rust and allow workpieces to slide smoothly.
-
Check Drive Belts Regularly: Inspect belts for wear, cracks, or looseness and replace them if necessary to maintain consistent spindle speeds.
-
Lubricate Key Moving Parts: Periodically lubricate the worm gear, rack bar, and spindle splines to ensure smooth table height adjustment and spindle movement.
-
Keep the Motor Ventilated: Blow out accumulated dust around the motor to prevent overheating and maintain optimal performance.
-
Disconnect Power Before Maintenance: Always turn off and unplug the drill press before cleaning, adjusting speeds, or replacing parts to prevent accidental startup.
